HBG-200-60AB
PWR SUPP, BATT & CONDManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
3.3A 60V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
Additional Information
Series: HBG-200 (200W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | OCP, OTP, OVP, SCP |
| Packaging | Bulk |
| Size / Dimension | 5.97"" Dia x 2.62"" H (151.7mm x 66.5mm) |
| Voltage - Output | 60V |
| Type | Constant Current, Voltage |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 305VAC |
| Approval Agency | CB, CCC, CE, EAC, ENEC |
| Ratings | IP65 |
| Efficiency | 93.5% |
| Topology | AC DC Converter |
| Current - Output (Max) | 3.3A |
| Dimming | - |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 200 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Standard Number | - |
Request a Quote
Clients Also Buy

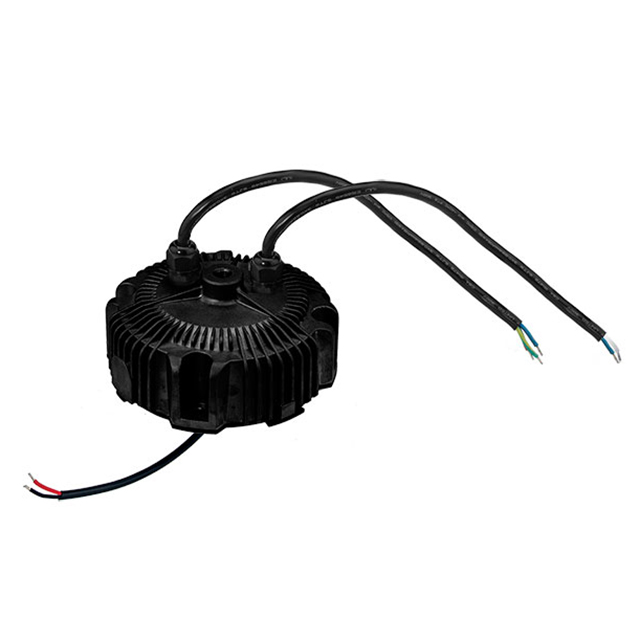

HBG-200-36
