HBG-160P-60DA
LED DRIVER CC 160WManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More

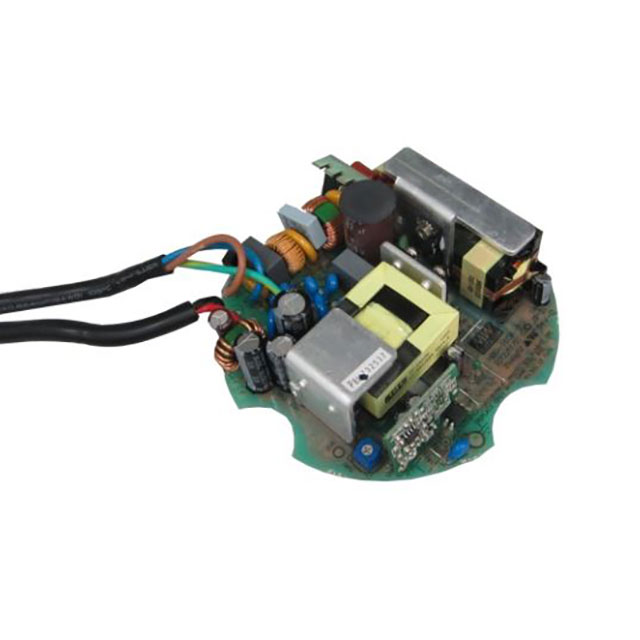

MEAN WELL USA Inc. HBG-160P-60DA is a 160W constant current LED driver with a 2.6A maximum output current. This AC DC converter topology features a single output with a voltage range of 21.6V to 36V. The unit boasts high efficiency up to 92% and supports analog and PWM dimming. Protection features include Over Temperature Protection (OTP), Over Voltage Protection (OVP), and Short Circuit Protection (SCP). Designed for demanding applications, it operates within a 90VAC to 305VAC input voltage range and offers 3.75 kV isolation. The HBG-160 series is commonly employed in signage, architectural lighting, and industrial lighting sectors. This component meets UL 8750, CB, CCC, CE, and ENEC standards. Its compact circular form factor measures 4.91 inches in diameter and 1.34 inches in height, with wire lead terminations.
Additional Information
Series: HBG-160 (160W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 4.91"" Dia x 1.34"" H (124.6mm x 34.0mm) |
| Voltage - Output | 21.6 ~ 36V |
| Type | Constant Current, Voltage |
| Operating Temperature | - |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 305VAC |
| Approval Agency | CB, CCC, CE, cURus, ENEC |
| Ratings | - |
| Efficiency | 92% |
| Topology | AC DC Converter |
| Current - Output (Max) | 2.6A |
| Dimming | Analog, PWM |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 156 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Standard Number | UL 8750 |
| Programmable | Not Verified |
