GSC40B-1050
LED DRVR CC AC/DC 19-38V 1.05AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More

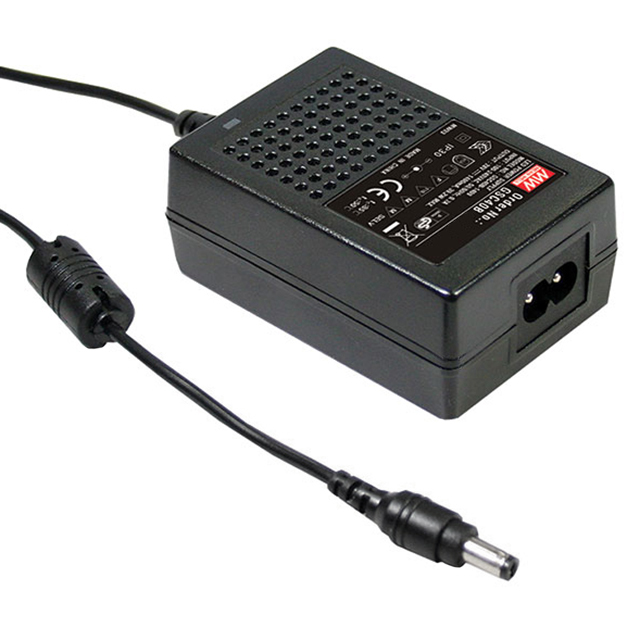

MEAN WELL USA Inc. GSC40B series constant current LED driver, part number GSC40B-1050, delivers 1.05A output current with a voltage range of 19-38V. This 40W AC/DC converter features a single output and an efficiency of 87.5%. Designed for reliable operation, it includes short circuit protection (SCP) and operates within an ambient temperature range of -30°C to 50°C. The unit boasts a 3.75 kV isolation voltage and complies with IP40 ratings. Its compact dimensions are 79.0mm x 54.0mm x 33.0mm, with a termination style of a 2.1mm I.D. x 5.5mm O.D. x 11mm barrel plug. Approvals include CB, CCC, CE, ENEC, and KEMA-KEUR, making it suitable for various demanding applications including architectural lighting, industrial signage, and general illumination systems. Input voltage range is 90VAC to 277VAC.
Additional Information
Series: GSC40B (40W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | SCP |
| Packaging | Box |
| Size / Dimension | 3.11"" L x 2.13"" W x 1.30"" H (79.0mm x 54.0mm x 33.0mm) |
| Voltage - Output | 19 ~ 38V |
| Type | Constant Current |
| Operating Temperature | -30°C ~ 50°C |
| Termination Style | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11mm |
| Voltage - Input (Max) | 277VAC |
| Approval Agency | CB, CCC, CE, ENEC, KEMA-KEUR |
| Ratings | IP40 |
| Efficiency | 87.5% |
| Topology | AC DC Converter |
| Current - Output (Max) | 1.05A |
| Dimming | - |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 40 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
