GSC25E-700
LED DRVR CC AC/DC 18-36V 700MAManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
MEAN WELL USA Inc. GSC25E Series Constant Current LED Driver, part number GSC25E-700. This 25W AC/DC converter features a 700mA output current and an adjustable output voltage range of 18-36V. The GSC25E-700 operates from a 90-277VAC input and offers an efficiency of 88.5%. It includes short circuit protection (SCP) and provides 3.75 kV isolation. The driver is designed with a single output and a termination style of a 2.1mm I.D. x 5.5mm O.D. x 11mm barrel plug. Its dimensions are 79.0mm x 54.0mm x 33.0mm, and it carries an IP40 rating. This component is suitable for applications requiring stable current for LED illumination and is approved by CB, CE, ENEC, and KEMA-KEUR. Operating temperature range is -30°C to 50°C.
Additional Information
Series: GSC25E (25W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | SCP |
| Packaging | Box |
| Size / Dimension | 3.11"" L x 2.13"" W x 1.30"" H (79.0mm x 54.0mm x 33.0mm) |
| Voltage - Output | 18 ~ 36V |
| Type | Constant Current |
| Operating Temperature | -30°C ~ 50°C |
| Termination Style | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11mm |
| Voltage - Input (Max) | 277VAC |
| Approval Agency | CB, CE, ENEC, KEMA-KEUR |
| Ratings | IP40 |
| Efficiency | 88.5% |
| Topology | AC DC Converter |
| Current - Output (Max) | 700mA |
| Dimming | - |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 25 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

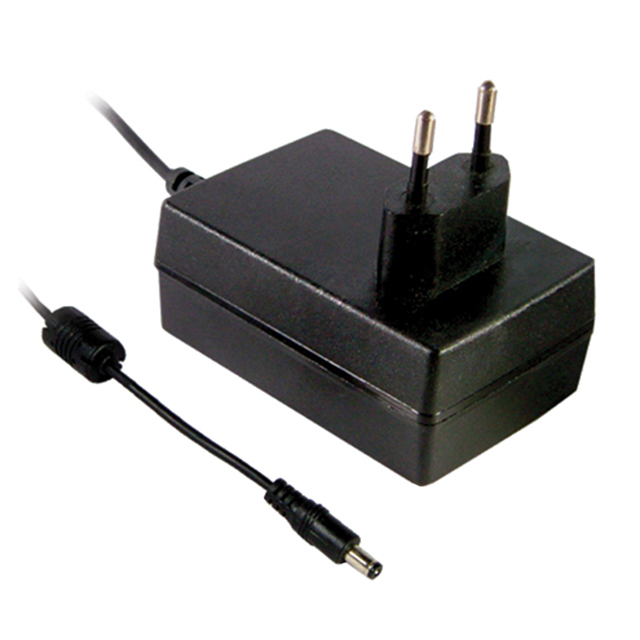

GSC25E-1050
