GSC18B-500
LED DRVR CC AC/DC 18-36V 500MAManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
The MEAN WELL USA Inc. GSC18B-500 is an 18W Constant Current AC/DC LED driver featuring a 1-output configuration. This device operates with an input voltage range of 90VAC to 277VAC and provides a regulated output current of 500mA, adjustable between 18V and 36V. With an efficiency rating of 88.5%, it offers a robust solution for driving LED loads. Key features include short-circuit protection (SCP) and a 3.75 kV isolation voltage. The compact dimensions of 79.0mm x 54.0mm x 33.0mm and a barrel plug termination (2.1mm I.D. x 5.5mm O.D. x 11mm) facilitate integration into various lighting applications. Approved by CB, CCC, CE, ENEC, and KEMA-KEUR, this driver is suitable for indoor and protected outdoor environments, rated IP40, and operates within an ambient temperature range of -30°C to 50°C. Industries benefiting from this component include commercial and general lighting.
Additional Information
Series: GSC18B (18W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | SCP |
| Packaging | Box |
| Size / Dimension | 3.11"" L x 2.13"" W x 1.30"" H (79.0mm x 54.0mm x 33.0mm) |
| Voltage - Output | 18 ~ 36V |
| Type | Constant Current |
| Operating Temperature | -30°C ~ 50°C |
| Termination Style | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11mm |
| Voltage - Input (Max) | 277VAC |
| Approval Agency | CB, CCC, CE, ENEC, KEMA-KEUR |
| Ratings | IP40 |
| Efficiency | 88.5% |
| Topology | AC DC Converter |
| Current - Output (Max) | 500mA |
| Dimming | - |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 18 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

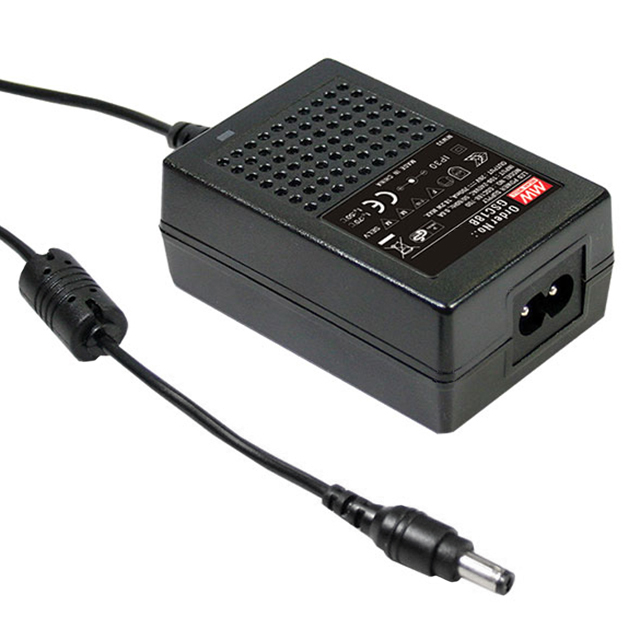

GSC18B-1050
