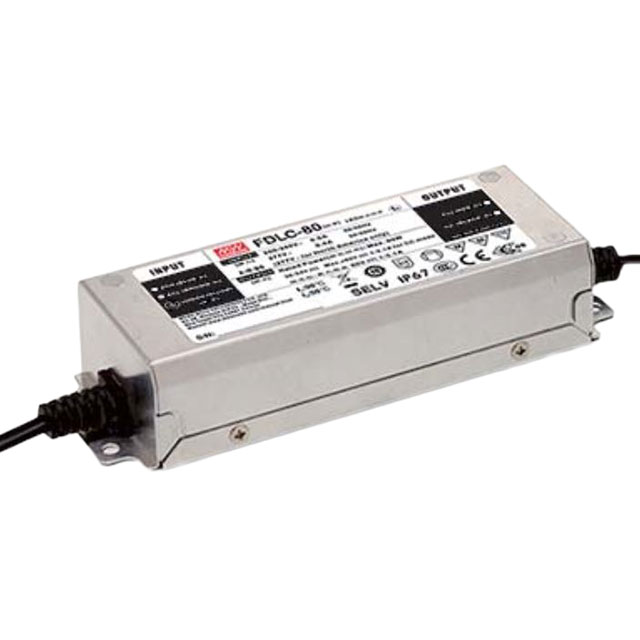

FDLC-80

LED POWER SUPPLIES 30-54V 1000-2

Manufacturer: MEAN WELL USA Inc.

Categories: LED Drivers

Quality Control: Learn More

MEAN WELL USA Inc. FDLC-80 (80W) series constant current LED driver. This AC DC converter features a single output, delivering 30-54VDC with a maximum current of 2.1A. The unit offers PWM dimming capabilities and boasts an efficiency of 90%. Protection features include Over-Temperature Protection (OTP) and Short-Circuit Protection (SCP). Designed for harsh environments, it carries an IP67 rating and operates within a temperature range of -30°C to 90°C. Input voltage is rated from 180VAC to 295VAC, with a 3.75 kV isolation voltage. The FDLC-80 is suitable for applications in industrial lighting, architectural lighting, and signage. Dimensions are 127.0mm x 53.0mm x 31.5mm with wire lead terminations. Approvals include CB, CCC, CE, and ENEC.

Additional Information

Series: FDLC-80 (80W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:
Technical Details:
FeaturesOTP, SCP
PackagingBox
Size / Dimension5.00"" L x 2.09"" W x 1.24"" H (127.0mm x 53.0mm x 31.5mm)
Voltage - Output30 ~ 54V
TypeConstant Current
Operating Temperature-30°C ~ 90°C
Termination StyleWire Leads
Voltage - Input (Max)295VAC
Approval AgencyCB, CCC, CE, ENEC
RatingsIP67
Efficiency90%
TopologyAC DC Converter
Current - Output (Max)2.1A
DimmingPWM
Voltage - Input (Min)180VAC
Power (Watts)113 W
Number of Outputs1
Voltage - Isolation3.75 kV
ProgrammableNot Verified
