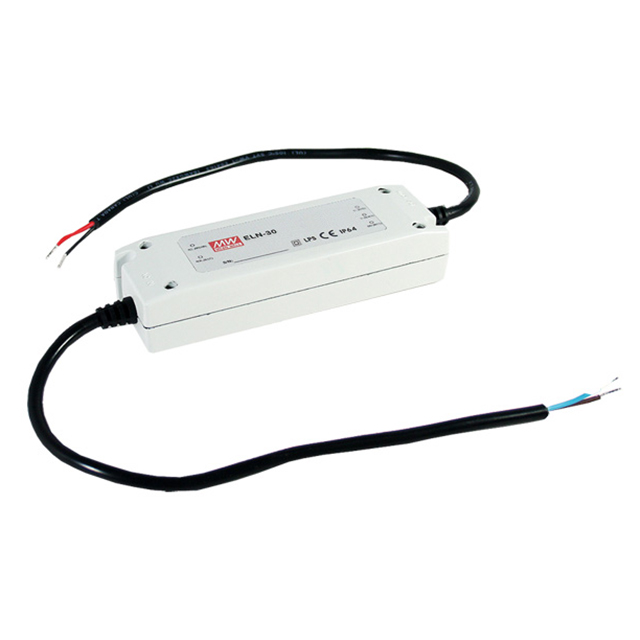

ELN-30-24
LED DRIVER CC AC/DC 3-24V 1.25AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
MEAN WELL USA Inc. ELN-30-24 is a 30W constant current LED driver from the ELN-30 series. This AC/DC converter features a single output with adjustable current up to 1.25A and an output voltage range of 3 to 24V. The unit offers analog and PWM dimming capabilities. Designed for reliability, it includes protection features for Over Current (OCP), Over Voltage (OVP), and Short Circuit (SCP). With an efficiency of 85% and an IP64 rating, it operates across a wide temperature range of -20°C to 60°C. Input voltage spans from 90VAC to 264VAC. Isolation voltage is rated at 3 kV. This component is suitable for applications in lighting and signage. Termination is via wire leads.
Additional Information
Series: ELN-30 (30W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 5.71"" L x 1.85"" W x 1.18"" H (145.0mm x 47.0mm x 30.0mm) |
| Voltage - Output | 3 ~ 24V |
| Type | Constant Current |
| Operating Temperature | -20°C ~ 60°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 264VAC |
| Approval Agency | CE, cURus |
| Ratings | IP64 |
| Efficiency | 85% |
| Topology | AC DC Converter |
| Current - Output (Max) | 1.25A |
| Dimming | Analog, PWM |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 30 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3 kV |
| Programmable | Not Verified |
