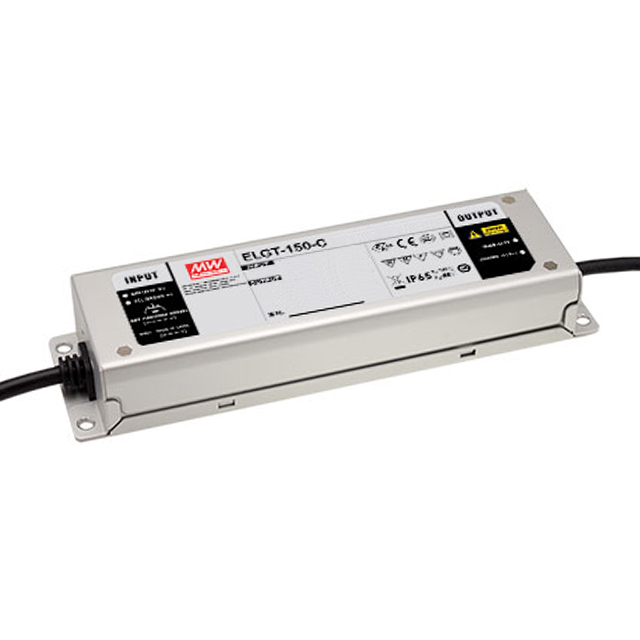

ELGT-150-C1400B
LED DRVR CC AC/DC 54-107V 1.4AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
MEAN WELL USA Inc. ELGT-150-C series constant current LED driver, model ELGT-150-C1400B. This 150W AC/DC converter features a 54-107V output range and a maximum output current of 1.4A. Designed for high efficiency at 91%, it incorporates analog and PWM dimming capabilities. Protection features include Over Temperature Protection (OTP), Over Voltage Protection (OVP), and Short Circuit Protection (SCP). The driver is rated IP67 for ingress protection and operates across a wide temperature range of -40°C to 90°C. Its robust design and compliance with CB, CCC, CE, and ENEC approvals make it suitable for demanding applications in general lighting, industrial lighting, and signage. Isolation voltage is rated at 3.75 kV. Dimensions are 195.0mm x 63.0mm x 35.5mm with wire lead terminations.
Additional Information
Series: ELGT-150-C (150W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 7.68"" L x 2.48"" W x 1.40"" H (195.0mm x 63.0mm x 35.5mm) |
| Voltage - Output | 54 ~ 107V |
| Type | Constant Current |
| Operating Temperature | -40°C ~ 90°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 305VAC |
| Approval Agency | CB, CCC, CE, ENEC |
| Ratings | IP67 |
| Efficiency | 91% |
| Topology | AC DC Converter |
| Current - Output (Max) | 1.4A |
| Dimming | Analog, PWM |
| Voltage - Input (Min) | 100VAC |
| Power (Watts) | 150 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
