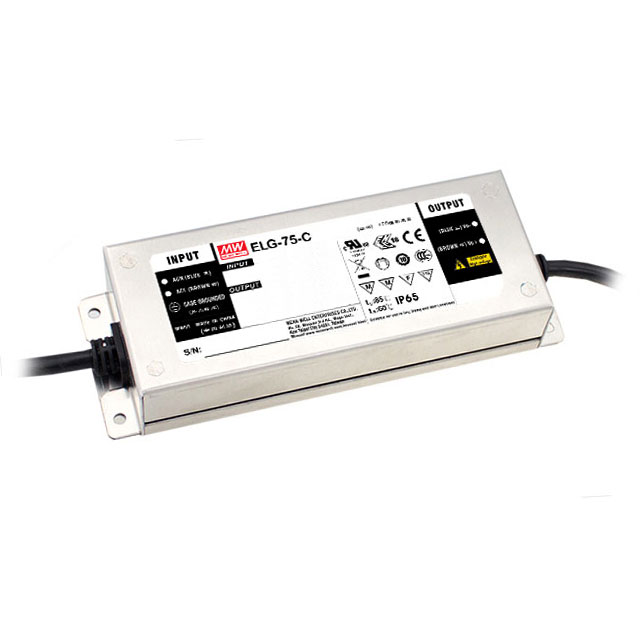

ELG-75-C500-3Y
LED CC AC/DC DRIVER 75WManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
500mA 75 ~ 150V Constant Current LED Driver AC DC Converter Topology 1 Output
Additional Information
Series: ELG-75-C (75W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 6.14"" L x 2.48"" W x 1.40"" H (156.0mm x 63.0mm x 35.5mm) |
| Voltage - Output | 75 ~ 150V |
| Type | Constant Current |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 305VAC |
| Approval Agency | CB, CCC, CE, cURus, EAC, ENEC, KC, RCM |
| Ratings | IP67 |
| Efficiency | 91% |
| Topology | AC DC Converter |
| Current - Output (Max) | 500mA |
| Voltage - Input (Min) | 100VAC |
| Power (Watts) | 75 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
ELG-75-C1050
LED DRVR CC AC/DC 35-71V 1.05A

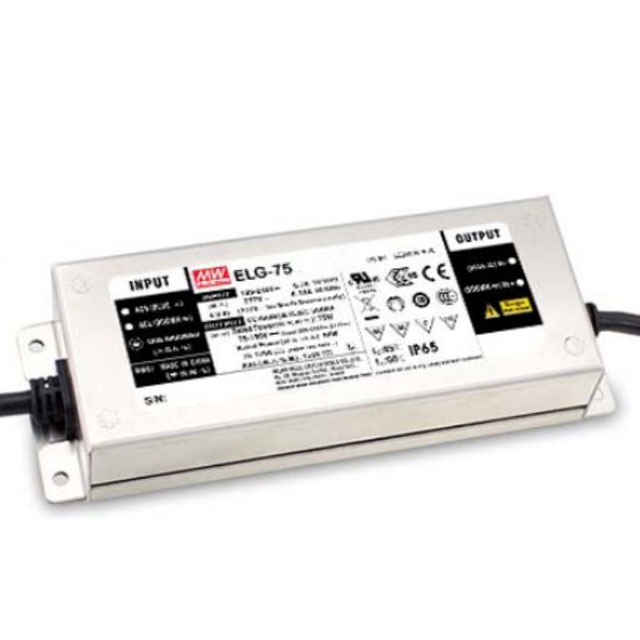

ELG-75-C1050-3Y
