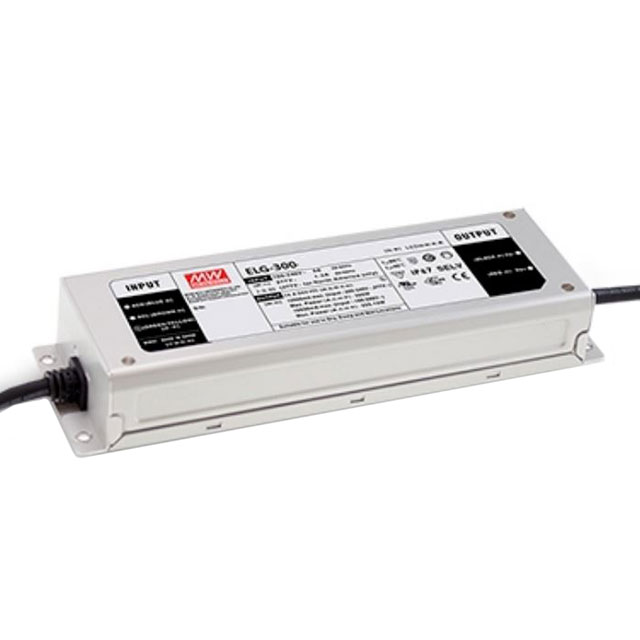

ELG-300-24A
O/P +24V/12500MAManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
12.5A 24V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
Additional Information
Series: ELG-300 (300W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 8.74"" L x 3.03"" W x 1.56"" H (222.0mm x 77.0mm x 39.5mm) |
| Voltage - Output | 24V |
| Type | Constant Current, Voltage |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 305VAC |
| Approval Agency | CB, CCC, CE, cURus, EAC, ENEC, KC |
| Ratings | IP67 |
| Efficiency | 94% |
| Topology | AC DC Converter |
| Current - Output (Max) | 12.5A |
| Dimming | - |
| Voltage - Input (Min) | 100VAC |
| Power (Watts) | 300 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

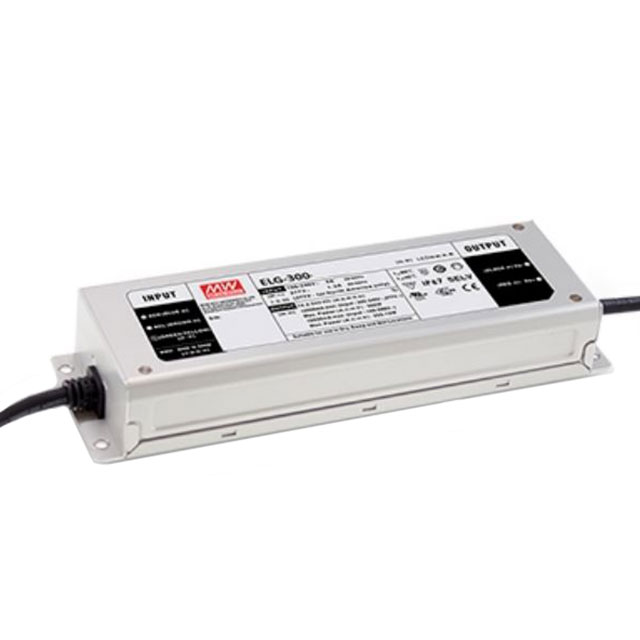

ELG-300-12A
