ELG-240-42D2
LED AC/DC DRIVER 240WManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More

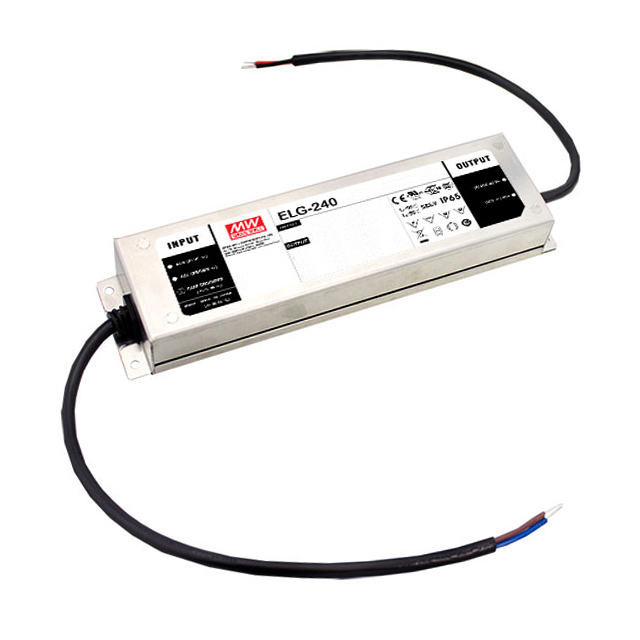

MEAN WELL USA Inc. ELG-240 (240W) series AC/DC LED driver, part number ELG-240-42D2. This 240W constant current and voltage LED power supply offers an output current of 5.71A and a fixed output voltage of 42V. Designed for demanding applications, it features an efficiency of 92.5% and operates across a wide input voltage range of 100VAC to 305VAC. Protection features include OCP, OTP, OVP, and SCP for enhanced reliability. The unit boasts IP67 rating for robust environmental protection and a high isolation voltage of 3.75 kV. Dimensions are 220.0mm x 71.0mm x 37.5mm with wire lead termination. Commonly utilized in general lighting, architectural lighting, and stage lighting systems. Approvals include CB, CCC, CE, cURus, EAC, ENEC, KC, and RCM.
Additional Information
Series: ELG-240 (240W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 8.66"" L x 2.80"" W x 1.48"" H (220.0mm x 71.0mm x 37.5mm) |
| Voltage - Output | 42V |
| Type | Constant Current, Voltage |
| Operating Temperature | -40°C ~ 90°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 305VAC |
| Approval Agency | CB, CCC, CE, cURus, EAC, ENEC, KC, RCM |
| Ratings | IP67 |
| Efficiency | 92.5% |
| Topology | AC DC Converter |
| Current - Output (Max) | 5.71A |
| Voltage - Input (Min) | 100VAC |
| Power (Watts) | 240 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
