ELG-200-24D2
LED AC/DC DRIVER 200WManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
MEAN WELL USA Inc. ELG-200 Series AC/DC LED Driver, Part Number ELG-200-24D2. This 200W constant current and voltage driver offers a maximum output current of 8.4A and a fixed output voltage of 24V. Designed with a 3.75 kV isolation voltage, it operates efficiently at 92% and features comprehensive protection against over current (OCP), over temperature (OTP), over voltage (OVP), and short circuit (SCP). Its wide input voltage range spans from 100VAC to 305VAC, with a maximum input of 305VAC. The driver boasts an IP67 rating and is suitable for operation across an extended temperature range of -40°C to 90°C. Termination is provided via wire leads. This component is commonly employed in general lighting, architectural lighting, and outdoor lighting applications. Approvals include CB, CCC, CE, cURus, EAC, ENEC, KC, and RCM.
Additional Information
Series: ELG-200 (200W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 8.66"" L x 2.80"" W x 1.48"" H (220.0mm x 71.0mm x 37.5mm) |
| Voltage - Output | 24V |
| Type | Constant Current, Voltage |
| Operating Temperature | -40°C ~ 90°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 305VAC |
| Approval Agency | CB, CCC, CE, cURus, EAC, ENEC, KC, RCM |
| Ratings | IP67 |
| Efficiency | 92% |
| Topology | AC DC Converter |
| Current - Output (Max) | 8.4A |
| Voltage - Input (Min) | 100VAC |
| Power (Watts) | 202 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

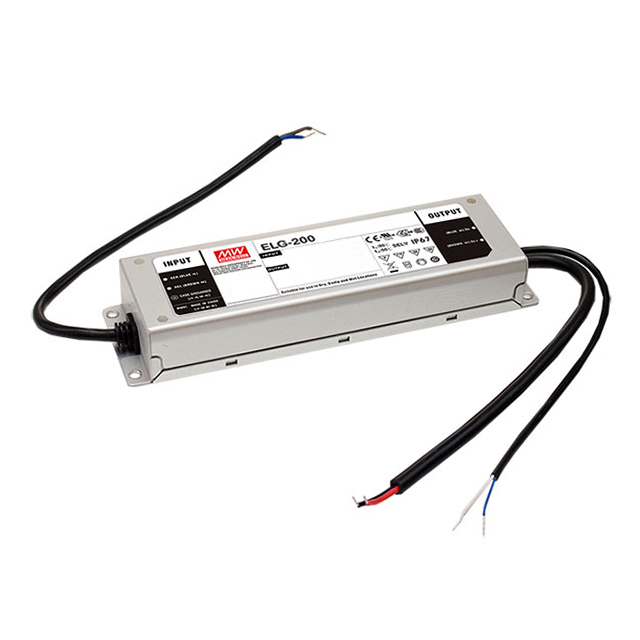

ELG-200-12
LED DRVR CC/CV AC/DC 12V 16A

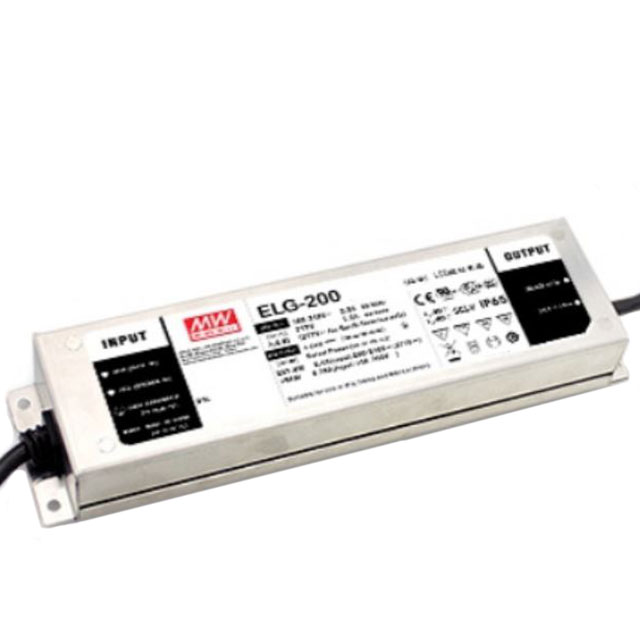

ELG-200-12-3Y
