ELG-150-C700D2
O/P +107~214V700MAManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
MEAN WELL USA Inc. ELG-150-C700D2 is a 150W constant current LED driver from the ELG-150-C series. This AC/DC converter topology delivers an output current of 700mA with a configurable output voltage range of 107V to 214V. Featuring high efficiency up to 92%, it incorporates thermal protection (OTP), over-voltage protection (OVP), and short-circuit protection (SCP). Designed for demanding applications, it operates across a wide ambient temperature range of -40°C to 90°C and boasts an IP67 rating for environmental resilience. The unit is suitable for general lighting, architectural lighting, and industrial lighting applications. Input voltage spans from 100VAC to 305VAC, with 3.75 kV isolation. Termination is via wire leads.
Additional Information
Series: ELG-150-C (150W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 7.68"" L x 2.48"" W x 1.40"" H (195.0mm x 63.0mm x 35.5mm) |
| Voltage - Output | 107 ~ 214V |
| Type | Constant Current |
| Operating Temperature | -40°C ~ 90°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 305VAC |
| Approval Agency | CB, CCC, CE, cURus, EAC, ENEC, RCM |
| Ratings | IP67 |
| Efficiency | 92% |
| Topology | AC DC Converter |
| Current - Output (Max) | 700mA |
| Dimming | - |
| Voltage - Input (Min) | 100VAC |
| Power (Watts) | 150 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
ELG-150-C1050
LED DRVR CC AC/DC 72-143V 1.05A

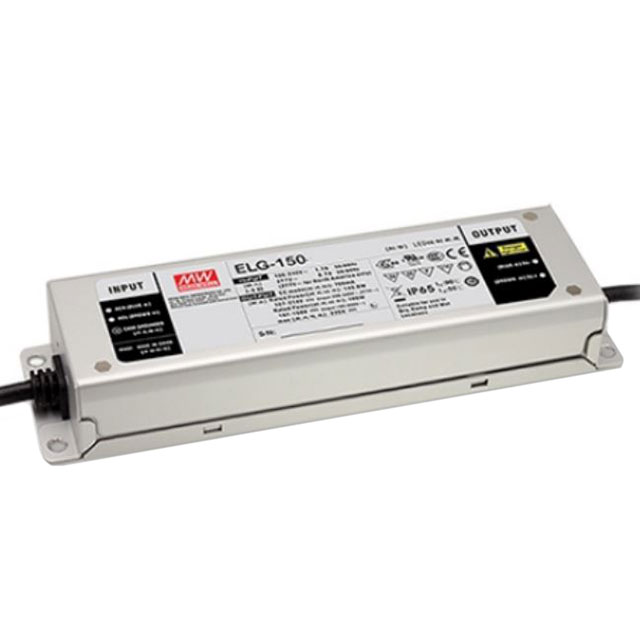

ELG-150-C1050-3Y
