CLG-150-15
LED DRVR CC/CV AC/DC 11.25-15VManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
The MEAN WELL CLG-150-15 is a 150W AC/DC LED driver operating in Constant Current and Constant Voltage modes. This single-output device provides a 9.5A maximum output current and an adjustable output voltage range of 11.25V to 15V. Designed with an AC DC Converter topology, it features a robust enclosure with IP67 rating, suitable for demanding environments. Key protective features include Over Current Protection (OCP), Over Temperature Protection (OTP), Over Voltage Protection (OVP), and Short Circuit Protection (SCP). Efficiency is rated at 88%, and the unit operates across an input voltage range of 90VAC to 295VAC. Isolation voltage is 3.75 kV. The CLG-150-15 is utilized in general lighting, architectural lighting, and outdoor lighting applications. Termination is via wire leads, and it is supplied in box packaging. Approvals include CB, CCC, CE, cURus, PSE, and TUV. Dimensions are 7.80" L x 2.68" W x 1.53" H.
Additional Information
Series: CLG-150 (150W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 7.80"" L x 2.68"" W x 1.53"" H (198.2mm x 68.0mm x 38.8mm) |
| Voltage - Output | 11.25 ~ 15V |
| Type | Constant Current, Voltage |
| Operating Temperature | -30°C ~ 70°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 295VAC |
| Approval Agency | CB, CCC, CE, cURus, PSE, TUV |
| Ratings | IP67 |
| Efficiency | 88% |
| Topology | AC DC Converter |
| Current - Output (Max) | 9.5A |
| Dimming | - |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 143 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

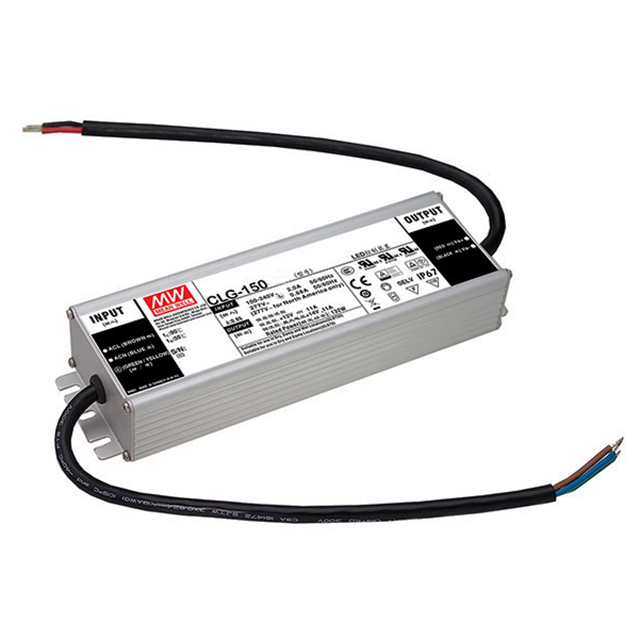

CLG-150-12
LED DRVR CC/CV AC/DC 9-12V 11A

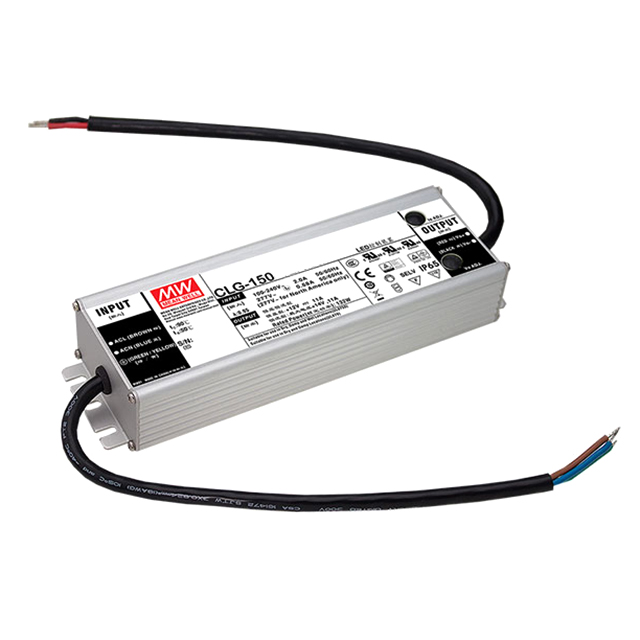

CLG-150-12A
