CLG-100-48
LED DRVR CC/CV AC/DC 36-48V 2AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More

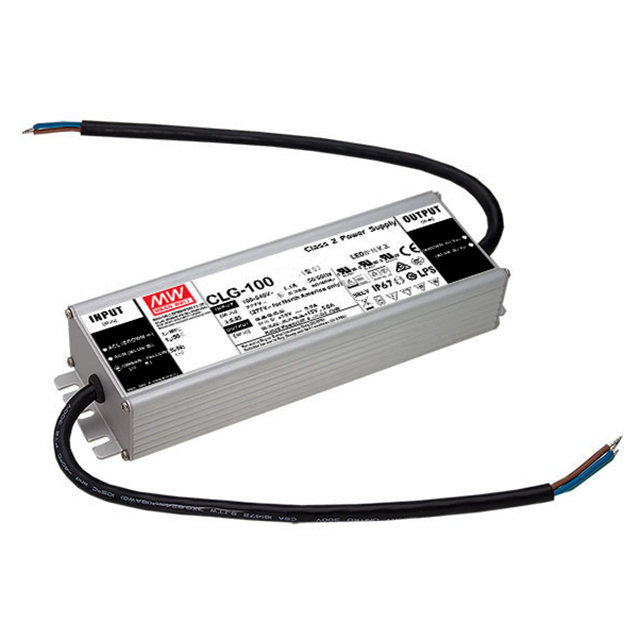

The MEAN WELL USA Inc. CLG-100-48 is a 100W AC/DC LED driver featuring a constant current and constant voltage output. This single-output device operates with an input voltage range of 90VAC to 295VAC and delivers a maximum output current of 2A. The output voltage can be adjusted between 36V and 48V. Engineered for reliability, it incorporates protection features including Over Current Protection (OCP), Over Temperature Protection (OTP), Over Voltage Protection (OVP), and Short Circuit Protection (SCP). With an impressive efficiency of 88.5% and an IP67 rating, the CLG-100-48 is suitable for demanding applications in areas such as industrial lighting and signage. The driver is supplied with wire leads for termination and has an isolation voltage of 3.75 kV. Approvals include CB, CCC, CE, PSE, TUV, and UR.
Additional Information
Series: CLG-100 (100W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 7.80"" L x 2.68"" W x 1.53"" H (198.2mm x 68.0mm x 38.8mm) |
| Voltage - Output | 36 ~ 48V |
| Type | Constant Current, Voltage |
| Operating Temperature | -30°C ~ 70°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 295VAC |
| Approval Agency | CB, CCC, CE, PSE, TUV, UR |
| Ratings | IP67 |
| Efficiency | 88.5% |
| Topology | AC DC Converter |
| Current - Output (Max) | 2A |
| Dimming | - |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 96 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
