CEN-60-48
LED DRIVER CC AC/DC 36-48V 1.3AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
MEAN WELL USA Inc. CEN-60 (60W) series constant current LED driver, part number CEN-60-48. This AC/DC converter provides a regulated 1.3A output current with an adjustable voltage range of 36-48V, delivering up to 62W of power. Designed for high efficiency at 91%, it incorporates comprehensive protection features including OCP, OTP, OVP, and SCP. The unit offers 3.75 kV isolation and operates across a wide input voltage range of 90-295VAC. Its robust construction meets IP66 ingress protection standards, making it suitable for demanding environmental conditions. Applications include architectural lighting, industrial illumination, and signage. Termination is via wire leads, and the component is supplied in box packaging. Approvals include CB, CE, cURus, PSE, and TUV.
Additional Information
Series: CEN-60 (60W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 6.46"" L x 2.46"" W x 1.59"" H (164.0mm x 62.5mm x 40.5mm) |
| Voltage - Output | 36 ~ 48V |
| Type | Constant Current |
| Operating Temperature | -30°C ~ 70°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 295VAC |
| Approval Agency | CB, CE, cURus, PSE, TUV |
| Ratings | IP66 |
| Efficiency | 91% |
| Topology | AC DC Converter |
| Current - Output (Max) | 1.3A |
| Dimming | - |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 62 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

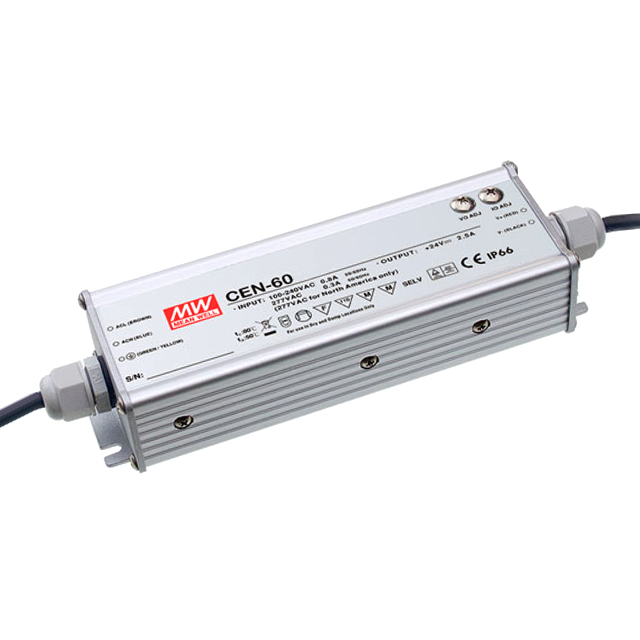

CEN-60-12
