CEN-100-30
LED DRVR CC AC/DC 19.5-30V 3.2AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
MEAN WELL USA Inc. CEN-100 (100W) series constant current LED driver, part number CEN-100-30. This AC/DC converter features 1 output with a maximum current of 3.2A and an adjustable output voltage range of 19.5V to 30V. Delivering 96W of power with 90% efficiency, it operates from 90VAC to 295VAC input and offers 3.75 kV isolation. Protection features include OCP, OTP, OVP, and SCP. Rated IP66, this driver is suitable for applications in signage, architectural lighting, and general illumination. Dimensions are 174.0mm x 62.5mm x 40.5mm with wire lead termination. Certifications include CB, CE, cURus, PSE, and TUV.
Additional Information
Series: CEN-100 (100W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 6.85"" L x 2.46"" W x 1.59"" H (174.0mm x 62.5mm x 40.5mm) |
| Voltage - Output | 19.5 ~ 30V |
| Type | Constant Current |
| Operating Temperature | -30°C ~ 70°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 295VAC |
| Approval Agency | CB, CE, cURus, PSE, TUV |
| Ratings | IP66 |
| Efficiency | 90% |
| Topology | AC DC Converter |
| Current - Output (Max) | 3.2A |
| Dimming | - |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 96 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

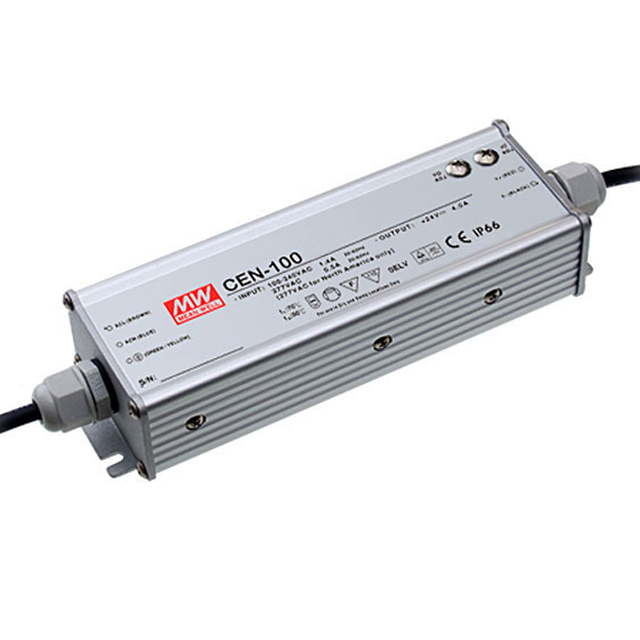

CEN-100-20
