APV-16E-12
LED DRIVER CV AC/DC 12V 1.25AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More

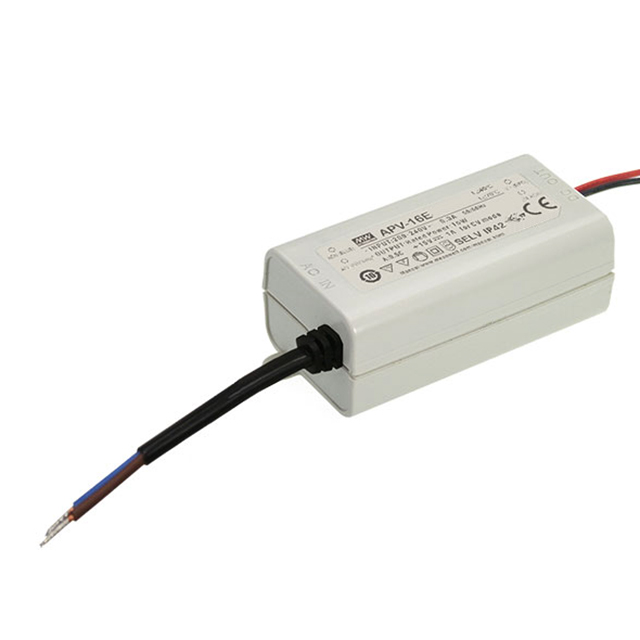

MEAN WELL USA Inc. APV-16E-12 is a 16W constant voltage AC/DC LED driver offering a 12V output at a maximum current of 1.25A. This single-output unit operates across an input voltage range of 180VAC to 264VAC, with an isolation voltage of 3.75 kV. Featuring OCP, OVP, and SCP protection, the APV-16E series driver achieves an efficiency of 79%. Its IP42 rating and operating temperature range of -30°C to 70°C make it suitable for various applications. The compact dimensions of 77.0mm x 40.0mm x 29.0mm and wire lead termination facilitate integration. Approvals include CE and ENEC. This component finds application in general lighting and signage.
Additional Information
Series: APV-16E (16W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 3.03"" L x 1.57"" W x 1.14"" H (77.0mm x 40.0mm x 29.0mm) |
| Voltage - Output | 12V |
| Type | Constant Voltage |
| Operating Temperature | -30°C ~ 70°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 264VAC |
| Approval Agency | CE, ENEC |
| Ratings | IP42 |
| Efficiency | 79% |
| Topology | AC DC Converter |
| Current - Output (Max) | 1.25A |
| Dimming | - |
| Voltage - Input (Min) | 180VAC |
| Power (Watts) | 15 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
