APC-8-500
LED DRIVER CC AC/DC 8-16V 500MAManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More

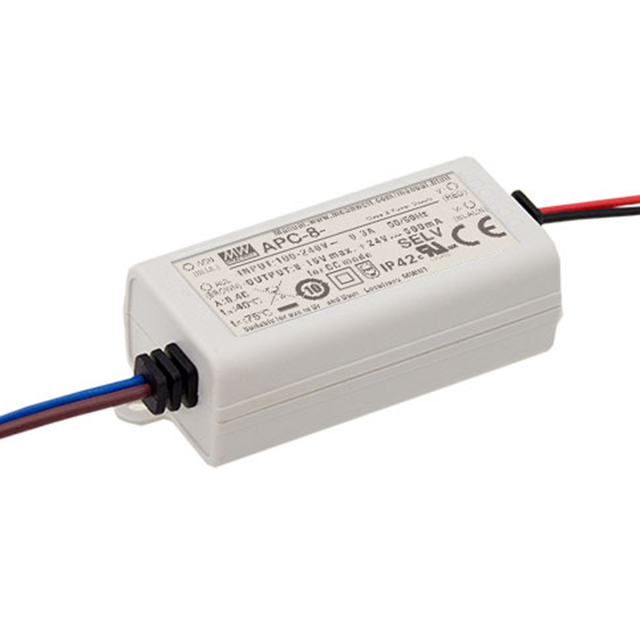

500mA 8 ~ 16V Constant Current LED Driver AC DC Converter Topology 1 Output
Additional Information
Series: APC-8 (8W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | SCP |
| Packaging | Box |
| Size / Dimension | 2.36"" L x 1.18"" W x 0.93"" H (60.0mm x 30.0mm x 23.5mm) |
| Voltage - Output | 8 ~ 16V |
| Type | Constant Current |
| Operating Temperature | -30°C ~ 70°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 264VAC |
| Approval Agency | CCC, CE, cURus |
| Ratings | IP42 |
| Efficiency | 81% |
| Topology | AC DC Converter |
| Current - Output (Max) | 500mA |
| Dimming | - |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 8 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
