APC-16E-700
LED DRIVER CC AC/DC 9-24V 700MAManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
MEAN WELL USA Inc. APC-16E series AC/DC LED driver, part number APC-16E-700. This 17W constant current driver delivers 700mA output with an adjustable voltage range of 9-24V. Designed for AC input from 180-264VAC, it features a high efficiency of 82% and an isolation voltage of 3.75 kV. The unit includes Over Voltage Protection (OVP) and Short Circuit Protection (SCP) for enhanced reliability. Rated IP42, it operates across a wide temperature range of -30°C to 70°C. The compact dimensions of 77.0mm x 40.0mm x 29.0mm and wire lead termination style facilitate integration into various lighting applications, including general illumination and signage. Approvals include CE and ENEC.
Additional Information
Series: APC-16E (16W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OVP, SCP |
| Packaging | Box |
| Size / Dimension | 3.03"" L x 1.57"" W x 1.14"" H (77.0mm x 40.0mm x 29.0mm) |
| Voltage - Output | 9 ~ 24V |
| Type | Constant Current |
| Operating Temperature | -30°C ~ 70°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 264VAC |
| Approval Agency | CE, ENEC |
| Ratings | IP42 |
| Efficiency | 82% |
| Topology | AC DC Converter |
| Current - Output (Max) | 700mA |
| Dimming | - |
| Voltage - Input (Min) | 180VAC |
| Power (Watts) | 17 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

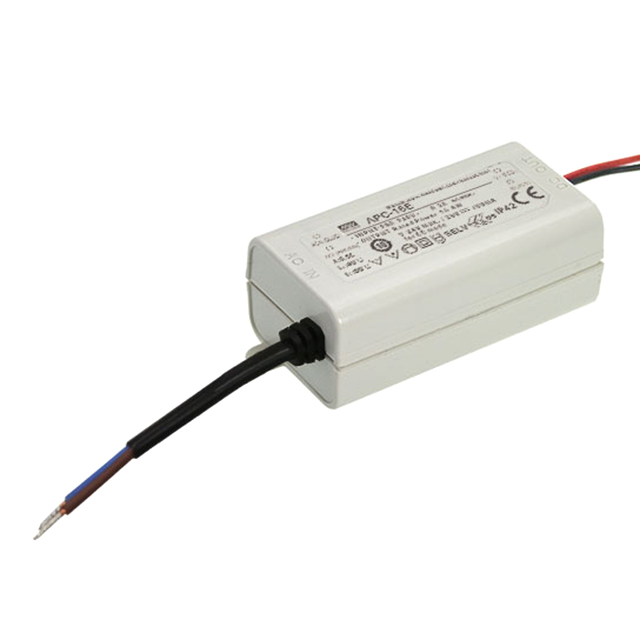

APC-16E-350
