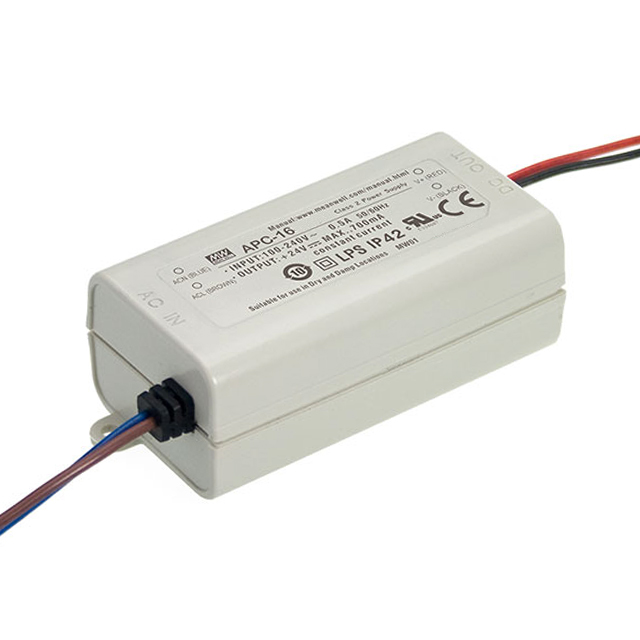

APC-16-350
LED DRVR CC AC/DC 12-48V 350MAManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
350mA 12 ~ 48V Constant Current LED Driver AC DC Converter Topology 1 Output
Additional Information
Series: APC-16 (16W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OVP, SCP |
| Packaging | Box |
| Size / Dimension | 3.03"" L x 1.57"" W x 1.14"" H (77.0mm x 40.0mm x 29.0mm) |
| Voltage - Output | 12 ~ 48V |
| Type | Constant Current |
| Operating Temperature | -30°C ~ 70°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 264VAC |
| Approval Agency | CCC, CE, cURus |
| Ratings | IP42 |
| Efficiency | 84% |
| Topology | AC DC Converter |
| Current - Output (Max) | 350mA |
| Dimming | - |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 17 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
