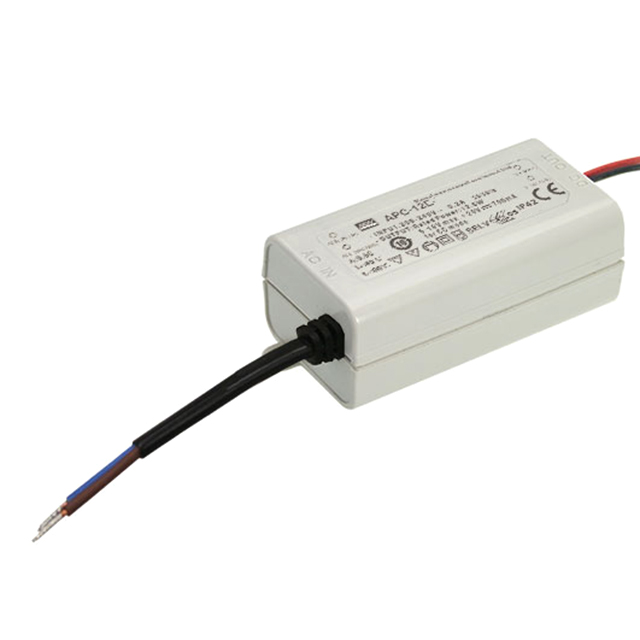

APC-12E-700
LED DRIVER CC AC/DC 9-18V 700MAManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
MEAN WELL USA Inc. APC-12E-700 is a 12W Constant Current LED Driver designed for AC/DC conversion. This unit delivers a stable 700mA output with an adjustable voltage range of 9V to 18V. Featuring a single output and an AC input range from 180VAC to 264VAC, it offers an efficiency of 79%. Built-in protections include Over Voltage Protection (OVP) and Short Circuit Protection (SCP). With an IP42 rating, the APC-12E-700 is suitable for applications requiring robust performance. Its compact dimensions of 77.0mm x 40.0mm x 29.0mm and wire lead termination facilitate integration into various lighting systems. This component is commonly employed in signage, architectural lighting, and general illumination applications. The isolation voltage is rated at 3.75 kV. Operating temperature range is -30°C to 70°C.
Additional Information
Series: APC-12E (12W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OVP, SCP |
| Packaging | Box |
| Size / Dimension | 3.03"" L x 1.57"" W x 1.14"" H (77.0mm x 40.0mm x 29.0mm) |
| Voltage - Output | 9 ~ 18V |
| Type | Constant Current |
| Operating Temperature | -30°C ~ 70°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 264VAC |
| Approval Agency | CE, ENEC |
| Ratings | IP42 |
| Efficiency | 79% |
| Topology | AC DC Converter |
| Current - Output (Max) | 700mA |
| Dimming | - |
| Voltage - Input (Min) | 180VAC |
| Power (Watts) | 13 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
