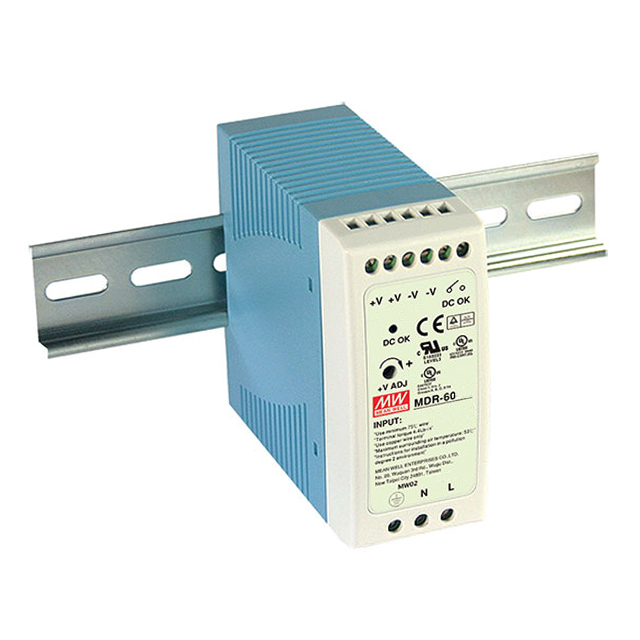

MDR-60-24
AC/DC DIN RAIL SUPPLY 24V 60WManufacturer: MEAN WELL USA Inc.
Categories: Industrial, DIN Rail Power Supplies
Quality Control: Learn More
Additional Information
Series: MDR-60 (60W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 60W |
| Features | Adjustable Output, Universal Input |
| Packaging | Box |
| Size / Dimension | 3.94"" L x 1.57"" W x 3.54"" H (100.0mm x 40.0mm x 90.0mm) |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Applications | Hazardous Locations, Industrial, ITE (Commercial) |
| Input Type | AC or DC |
| Approval Agency | CB, CE, cULus, cURus, TUV |
| Efficiency | 88% |
| Current - Output (Max) | 2.5A |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Number of Outputs | 1 |
| Voltage - Isolation | 3 kV |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | 120V |
| DC Voltage - Input (Max) | 370V |
