GD2-121509
2W;I:12VDC;O:+15/-9VDC@+100/-60MManufacturer: MEAN WELL USA Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Switching Regulator IC Positive and Negative (Dual Rail) Fixed -9V, 15V 2 Output 60mA, 100mA 7-SIP, 5 Leads
Additional Information
Series: GD2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 65 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 7-SIP, 5 Leads |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Function | - |
| Current - Output | 60mA, 100mA |
| Operating Temperature | -40°C ~ 90°C |
| Output Configuration | Positive and Negative (Dual Rail) |
| Frequency - Switching | 20kHz ~ 130kHz |
| Voltage - Input (Max) | 13.2V |
| Topology | - |
| Supplier Device Package | 7-SIP |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 10.8V |
| Voltage - Output (Min/Fixed) | -9V, 15V |
| Grade | - |
| Qualification | - |
Request a Quote
Clients Also Buy

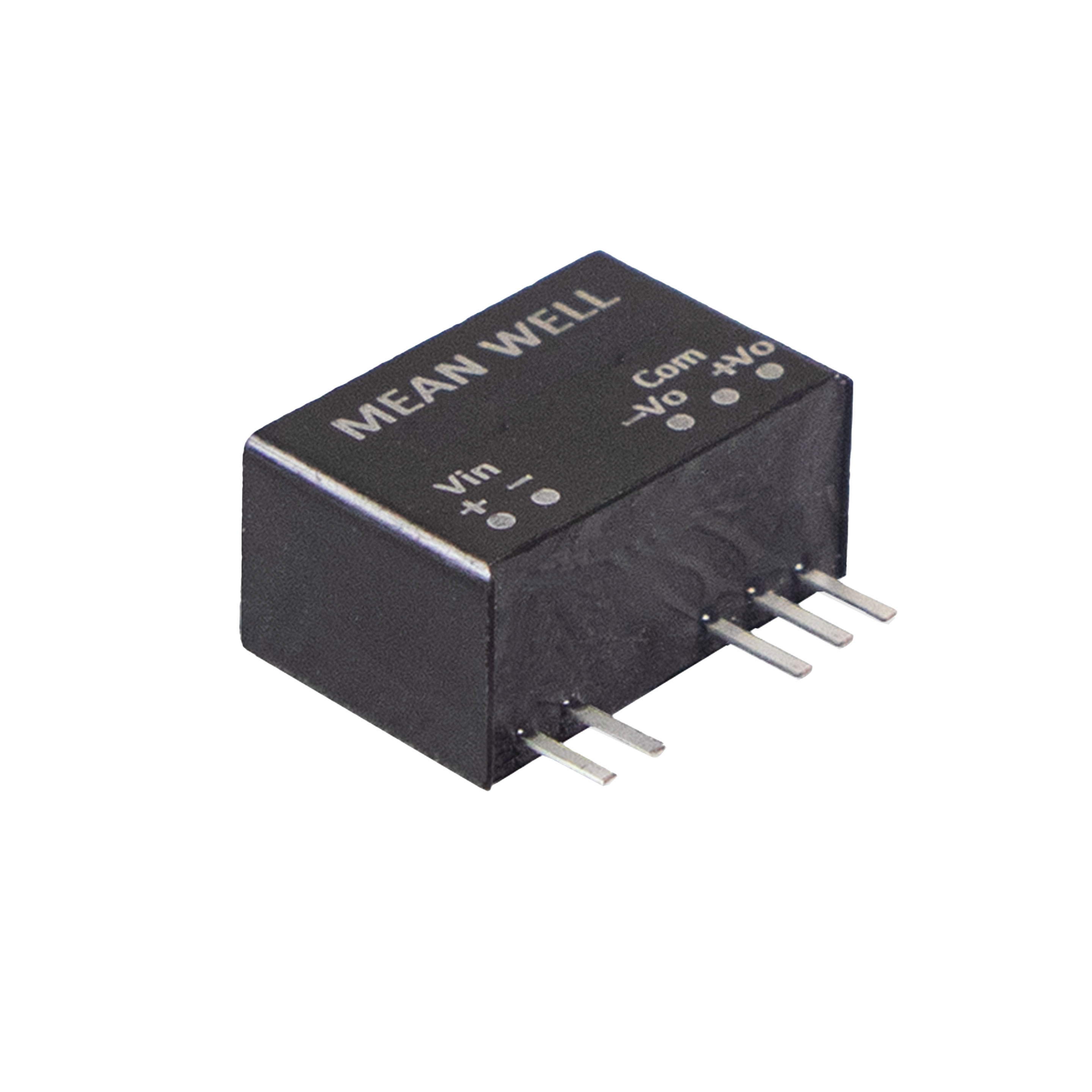

GD2-121503
