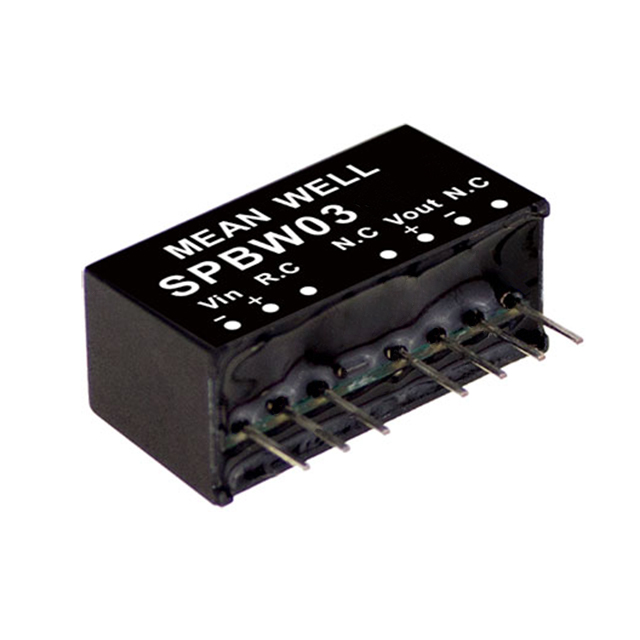

SPBW03G-12
DC DC CONVERTER 12V 3WManufacturer: MEAN WELL USA Inc.
Categories: DC DC Converters
Quality Control: Learn More
Isolated Module DC DC Converter 1 Output 12V 250mA 18V - 75V Input
Additional Information
Series: SPBW03 (3W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | Remote On/Off, OCP, SCP, UVLO |
| Packaging | Tube |
| Package / Case | 8-SIP Module, 7 Leads |
| Size / Dimension | 0.86"" L x 0.36"" W x 0.44"" H (21.8mm x 9.2mm x 11.1mm) |
| Mounting Type | Through Hole |
| Type | Isolated Module |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 75V |
| Efficiency | 85% |
| Current - Output (Max) | 250mA |
| Supplier Device Package | - |
| Voltage - Input (Min) | 18V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Control Features | Enable, Active High |
| Power (Watts) | 3 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 1.5 kV |
Request a Quote
