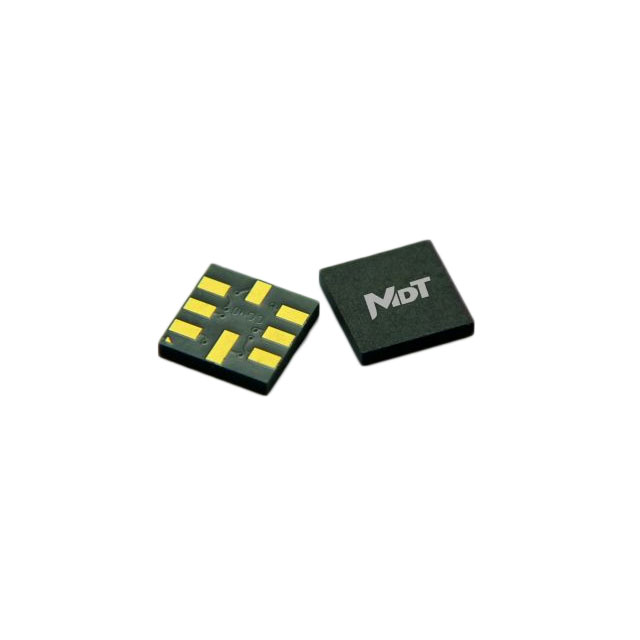

AMR3008
AMR SENSOR ANGLE DUAL 180DEGManufacturer: MDT
Categories: Angle, Linear Position Measuring
Quality Control: Learn More
Magnetoresistive Sensor Angle External Magnet, Not Included SMD (SMT) Tab
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 8-VLGA |
| Mounting Type | Surface Mount |
| Output | Wheatstone Bridge |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 18V |
| Linearity | - |
| Linear Range | - |
| Actuator Type | External Magnet, Not Included |
| Technology | Magnetoresistive |
| Resistance Tolerance | - |
| For Measuring | Angle |
| Supplier Device Package | 8-LGA (5x5) |
| Rotation Angle - Electrical, Mechanical | 0° ~ 180° |
| Output Signal | Cosine, Sine |
| Resistance | 4.2 kOhms |
| Programmable | - |
