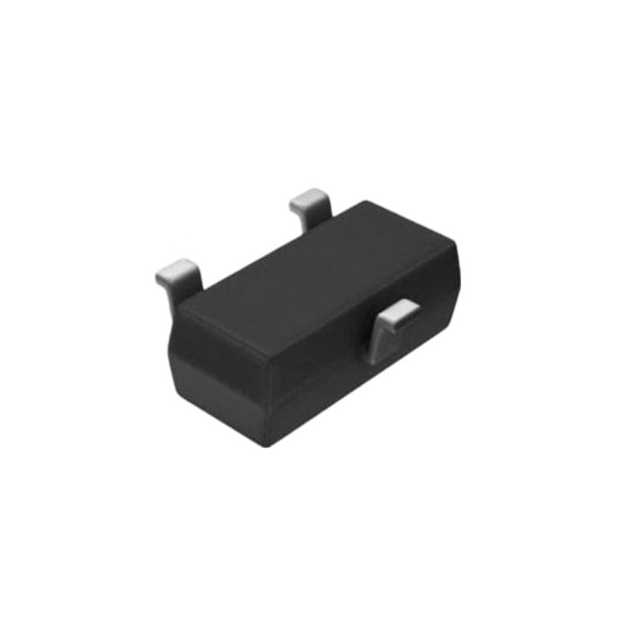

2N7002K
MOSFET SOT-23 N Channel 60VManufacturer: MDD
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 60 V 500mA (Ta) 500mW (Ta) Surface Mount SOT-23
Additional Information
Series: SOT-23RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 500mA (Ta) |
| Rds On (Max) @ Id, Vgs | 900mOhm @ 300mA, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 500mW (Ta) |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | SOT-23 |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 60 V |
| Gate Charge (Qg) (Max) @ Vgs | 0.31 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 23.8 pF @ 10 V |
