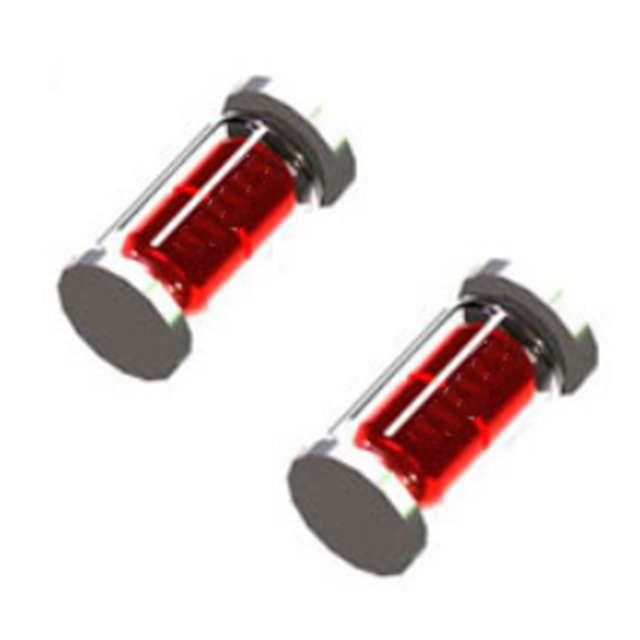

LL4148
DIODE GEN PURP 75V 200MA LL-34Manufacturer: MDD
Categories: Single Diodes
Quality Control: Learn More
Diode 75 V 200mA Surface Mount LL-34
Additional Information
Series: LL34RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 8 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 5pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 200mA |
| Supplier Device Package | LL-34 |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 75 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 50 mA |
| Current - Reverse Leakage @ Vr | 1 µA @ 75 V |
