ES2JB
DIODE GEN PURP 600V 2A SMBManufacturer: MDD
Categories: Single Diodes
Quality Control: Learn More

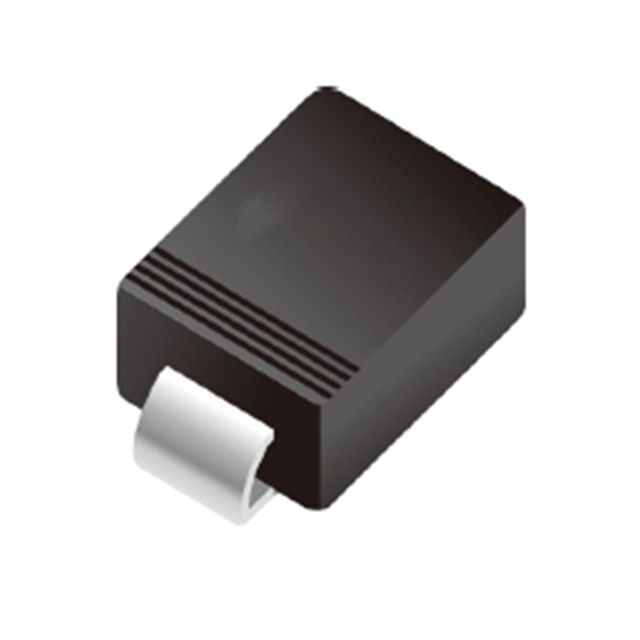

Diode 600 V 2A Surface Mount SMB
Additional Information
Series: SMBRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-214AA, SMB |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 35 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 60pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 2A |
| Supplier Device Package | SMB |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 2 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 600 V |
