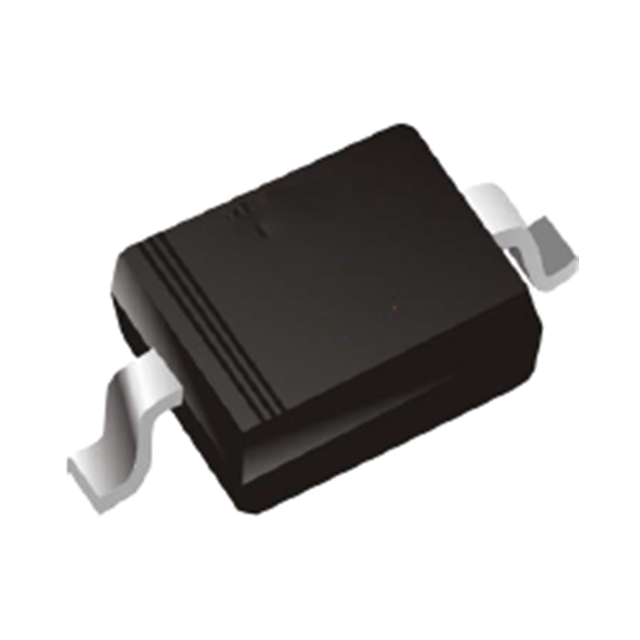

BAT54WSL9SD323
Diode Schottky 30V 0.2mA SOD323Manufacturer: MDD
Categories: Single Diodes
Quality Control: Learn More
Diode 30 V 200mA Surface Mount SOD-323
Additional Information
Series: BAT54RoHS Status: RoHS CompliantManufacturer Lead Time: Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-76, SOD-323 |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 5 ns |
| Technology | Schottky |
| Capacitance @ Vr, F | 60pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 200mA |
| Supplier Device Package | SOD-323 |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Grade | - |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 100 mA |
| Current - Reverse Leakage @ Vr | 2 µA @ 25 V |
| Qualification | - |
Request a Quote
