S9013
TRANS NPN 25V 0.5A SOT23Manufacturer: MDD
Categories: Single Bipolar Transistors
Quality Control: Learn More

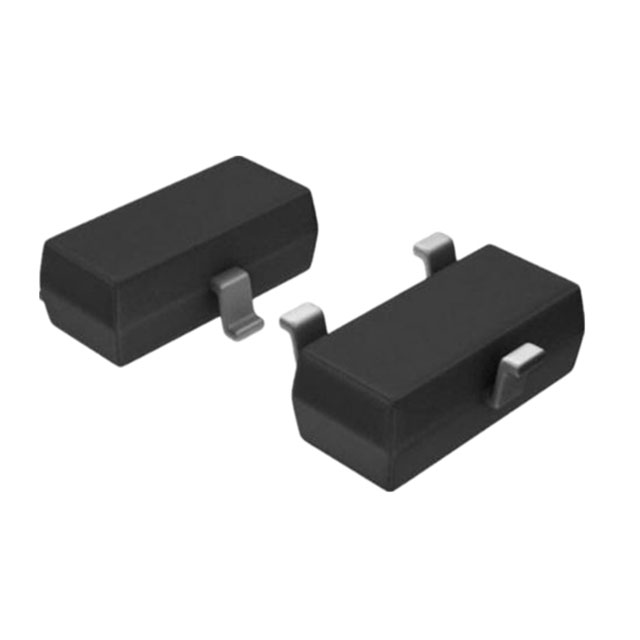

Bipolar (BJT) Transistor NPN 25 V 500 mA 150MHz 300 mW Surface Mount SOT-23
Additional Information
Series: S9RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 600mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 0.1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 120 @ 50mA, 1V |
| Frequency - Transition | 150MHz |
| Supplier Device Package | SOT-23 |
| Current - Collector (Ic) (Max) | 500 mA |
| Voltage - Collector Emitter Breakdown (Max) | 25 V |
| Power - Max | 300 mW |
