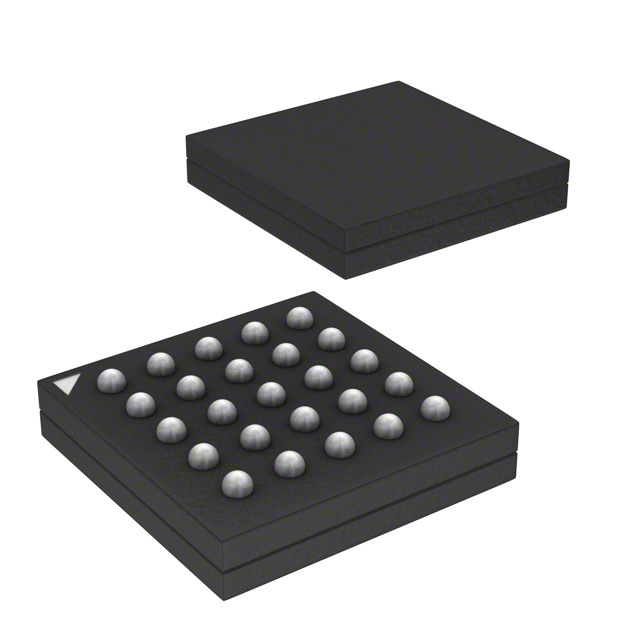

XR16M581IB25-F
IC UART FIFO 16B 25BGAManufacturer: MaxLinear, Inc.
Categories: UARTs (Universal Asynchronous Receiver Transmitter)
Quality Control: Learn More
The MaxLinear XR16M581IB25-F is a single-channel UART IC supporting RS232, RS422, and RS485 protocols. This device features a 16-byte FIFO buffer for both transmit and receive operations, enhancing data throughput and reducing CPU load. It integrates an internal oscillator, simplifying external component requirements, and includes timer/counter functionality. The XR16M581IB25-F offers auto flow control, false start bit detection, and an IrDA encoder/decoder, making it suitable for demanding applications. With a maximum data rate of 20Mbps and a supply voltage range of 1.62V to 3.63V, this UART is well-suited for industrial automation, networking equipment, and embedded systems. The component is supplied in a 25-BGA (3x3) package, designed for surface mounting.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Internal Oscillator, Timer/Counter |
| Packaging | Tray |
| Package / Case | 25-WFBGA |
| Number of Channels | 1, UART |
| Mounting Type | Surface Mount |
| Voltage - Supply | 1.62V ~ 3.63V |
| FIFO's | 16 Byte |
| Protocol | RS232, RS422, RS485 |
| Data Rate (Max) | 20Mbps |
| Supplier Device Package | 25-BGA (3x3) |
| With Auto Flow Control | Yes |
| With IrDA Encoder/Decoder | Yes |
| With False Start Bit Detection | Yes |
| With Modem Control | Yes |
