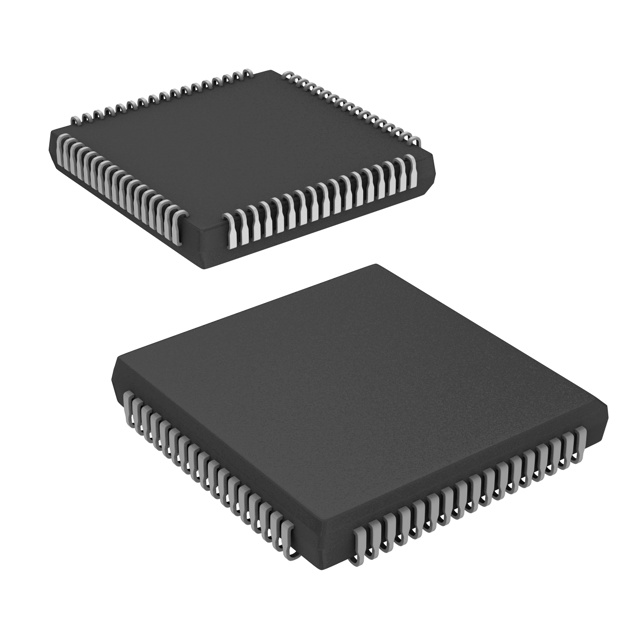

XR16C854CJTR-F
IC UART QUAD 2.97V - 5.5V 68PLCCManufacturer: MaxLinear, Inc.
Categories: UARTs (Universal Asynchronous Receiver Transmitter)
Quality Control: Learn More
MaxLinear, Inc. XR16C854CJTR-F is a quad-channel UART designed for high-performance serial communication. This device supports both RS232 and RS485 protocols, offering flexible connectivity options. It features 128-byte FIFOs for efficient data buffering and operates across a wide voltage range of 2.97V to 5.5V. The XR16C854CJTR-F includes an internal oscillator, timer/counter functionality, and supports auto flow control. Additional features such as false start bit detection, IrDA encoding/decoding, and modem control enhance its versatility. This component is ideal for applications in industrial automation, networking equipment, and data acquisition systems. The XR16C854CJTR-F is supplied in a 68-PLCC surface-mount package, delivered on tape and reel.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Internal Oscillator, Timer/Counter |
| Packaging | Tape & Reel (TR) |
| Package / Case | 68-LCC (J-Lead) |
| Number of Channels | 4, QUART |
| Mounting Type | Surface Mount |
| Voltage - Supply | 2.97V ~ 5.5V |
| FIFO's | 128 Byte |
| Protocol | RS232, RS485 |
| Data Rate (Max) | 2Mbps |
| Supplier Device Package | 68-PLCC (24.23x24.23) |
| With Auto Flow Control | Yes |
| With IrDA Encoder/Decoder | Yes |
| With False Start Bit Detection | Yes |
| With Modem Control | Yes |
