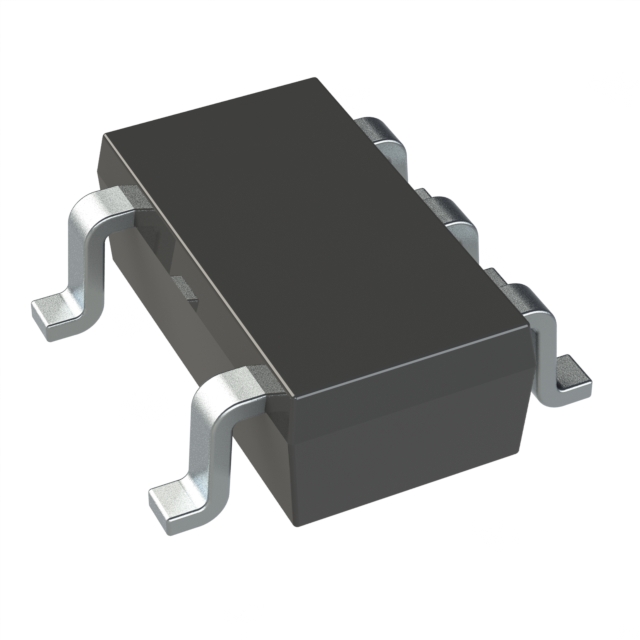

SPX3819M5-L-1-5
IC REG LINEAR 1.5V 500MA SOT23-5Manufacturer: MaxLinear, Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
MaxLinear, Inc. SPX3819M5-L-1-5 is a positive fixed output linear voltage regulator designed for high-performance applications. This component delivers a stable 1.5V output with a maximum output current of 500mA. It features an ultra-low quiescent current of 8 µA, making it ideal for power-sensitive designs. The device offers robust protection mechanisms including over current, over temperature, and reverse polarity protection. Its compact SOT-23-5 package (SC-74A, SOT-753) facilitates surface mount integration. The SPX3819M5-L-1-5 is suitable for a wide operating temperature range of -40°C to 125°C and supports input voltages up to 16V. This regulator finds application in portable electronics, battery-powered devices, and various industrial control systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SC-74A, SOT-753 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 500mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 8 µA |
| Voltage - Input (Max) | 16V |
| Number of Regulators | 1 |
| Supplier Device Package | SOT-23-5 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.5V |
| Control Features | Enable |
| PSRR | - |
| Voltage Dropout (Max) | - |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Current - Supply (Max) | 30 mA |
