XR76201EL
IC REG BUCK ADJ 1.5A 30QFNManufacturer: MaxLinear, Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
MaxLinear, Inc. XR76201EL is a PowerBlox™ series Synchronous Buck Switching Regulator. This adjustable output voltage device provides a positive output from 0.6V up to 40V, with a maximum output current of 1.5A. Operating with an input voltage range of 3V to 40V, the XR76201EL features a switching frequency adjustable between 400kHz and 800kHz. The device is housed in a 30-VFQFN exposed pad package, suitable for surface mounting. Its integrated synchronous rectifier enhances efficiency. This component is commonly utilized in industrial automation, telecommunications infrastructure, and automotive applications requiring efficient DC-DC voltage conversion.
Additional Information
Series: PowerBlox™RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 30-VFQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 1.5A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 400kHz ~ 800kHz |
| Voltage - Input (Max) | 40V |
| Topology | Buck |
| Supplier Device Package | 30-QFN (5x5) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 3V |
| Voltage - Output (Min/Fixed) | 0.6V |
Request a Quote
Clients Also Buy

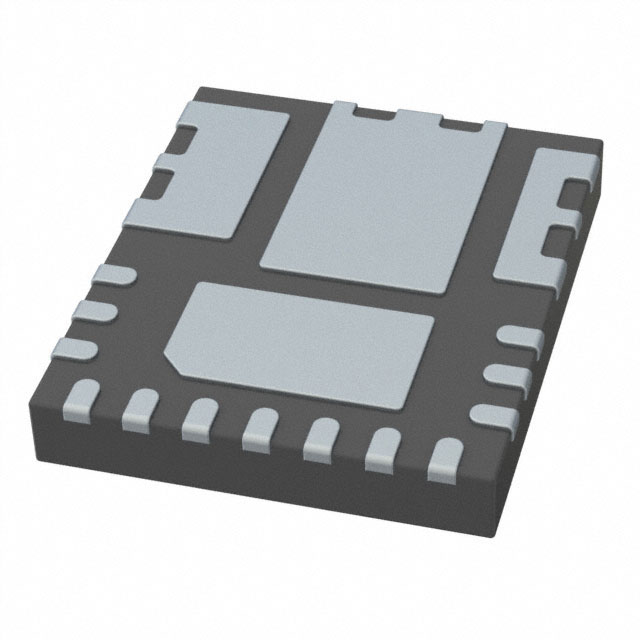

XR76116BEL-F
