SP6669BEK-L/TRR3
IC REG BUCK 1.2V 600MA SOT23-5Manufacturer: MaxLinear, Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
MaxLinear, Inc. SP6669BEK-L-TRR3 is a highly efficient, fixed 1.2V buck switching regulator IC designed for step-down voltage conversion. This single-output device delivers up to 600mA with a 1.5MHz switching frequency, optimizing for small solution size and excellent transient response. Featuring a synchronous rectifier, it minimizes power loss and enhances efficiency. The SP6669BEK-L-TRR3 operates from a 2.5V to 5.5V input voltage range and is housed in a compact SOT-23-5 package (SC-74A, SOT-753) suitable for surface mounting. Its robust operating temperature range of -40°C to 85°C (TA) makes it suitable for applications in consumer electronics, portable devices, and industrial control systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-74A, SOT-753 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 600mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 1.5MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | SOT-23-5 |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 2.5V |
| Voltage - Output (Min/Fixed) | 1.2V |
Request a Quote
Clients Also Buy

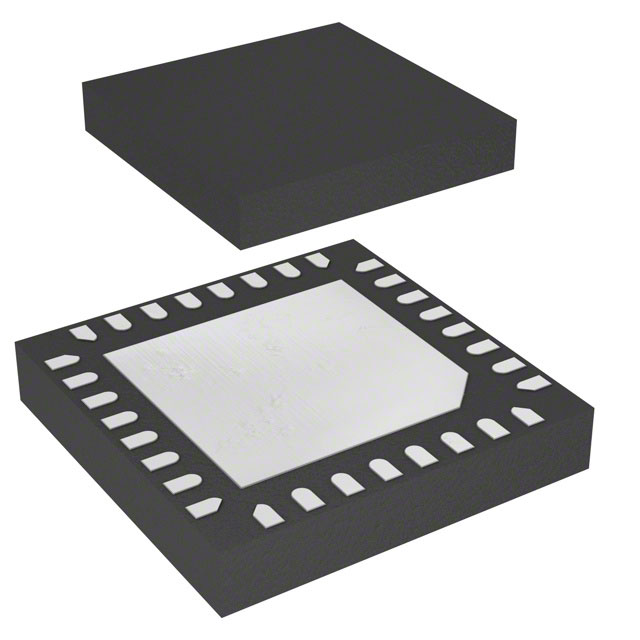

XR77103ELBTR
