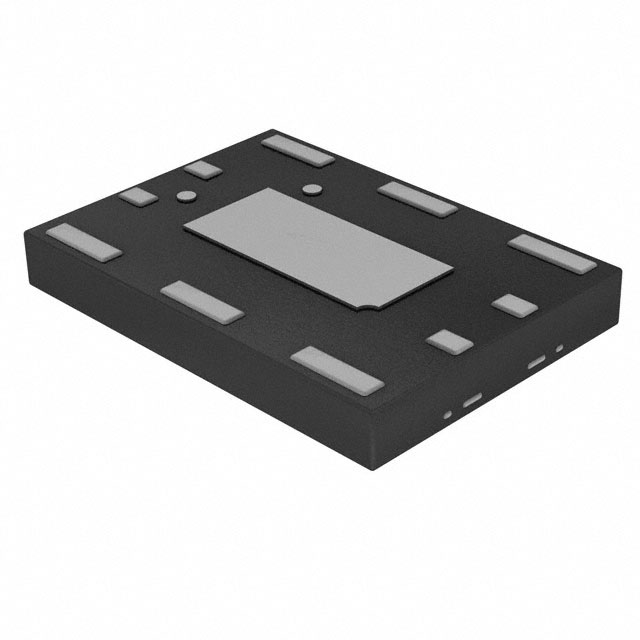

XR81111-CA04TR-F
IC CLK SYNTH LVPECL 156M 10VQFNManufacturer: MaxLinear, Inc.
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
The MaxLinear, Inc. XR81111-CA04TR-F is a single-circuit clock synthesizer designed for high-performance applications. This component operates with a maximum output frequency of 156.25MHz and utilizes an LVPECL output interface. It features a 1:1 input-to-output ratio and accepts a crystal input. The device supports a PLL function and includes a divider capability. Packaged in a 10-VQFN exposed pad (5x7mm) and supplied on tape and reel, the XR81111-CA04TR-F is suitable for surface mounting. It operates across a temperature range of -40°C to 85°C and requires a supply voltage between 2.375V and 3.465V. This device finds application in networking, telecommunications, and industrial automation sectors requiring precise clock generation.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-VQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | LVPECL |
| Frequency - Max | 156.25MHz |
| Input | Crystal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.375V ~ 3.465V |
| Ratio - Input:Output | 1:1 |
| Differential - Input:Output | No/Yes |
| Supplier Device Package | 10-QFN (5x7) |
| PLL | Yes |
| Divider/Multiplier | Yes/No |
| Number of Circuits | 1 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

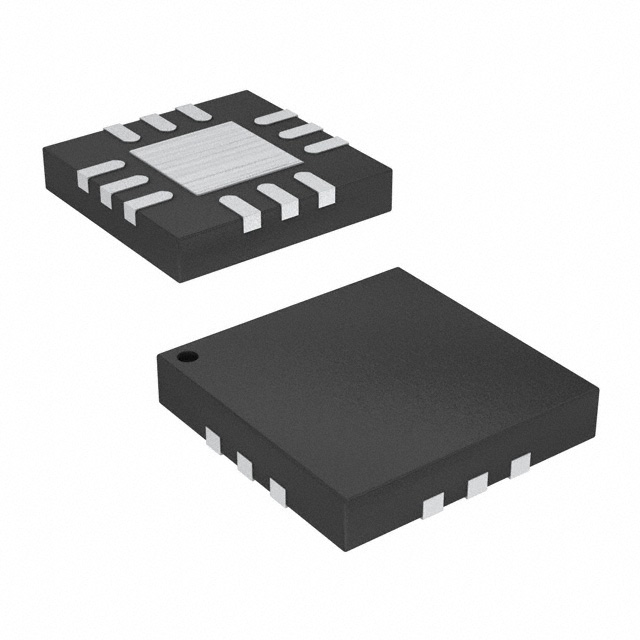

XR81112TR-F
