MOP-TFT800480-70A-BLM-TPC
GRAPHIC DISPLAY TFT RGB 7Manufacturer: Matrix Orbital
Categories: LCD, OLED, Graphic
Quality Control: Learn More

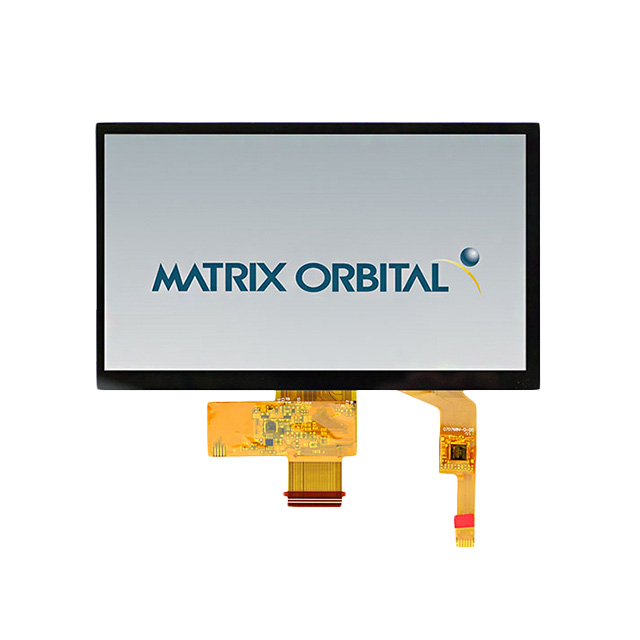

Matrix Orbital MOP-TFT800480-70A-BLM-TPC is a 7-inch (177.80mm) WVGA (800 x 480) transmissive TFT-LCD graphic display module. It features a capacitive touchscreen interface and supports 24-bit RGB parallel interface for vibrant Red, Green, and Blue color reproduction. The display utilizes a white LED backlight for illumination. Its viewing area measures 155.08mm wide by 86.92mm high. This component is commonly employed in industrial automation, medical equipment, and point-of-sale systems.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | TFT - Color |
| Display Mode | Transmissive |
| Backlight | LED |
| Interface | Parallel, 24-Bit (RGB) |
| Viewing Area | 155.08mm W x 86.92mm H |
| Dot Pixels | 800 x 480 (WVGA) |
| Diagonal Screen Size | 7"" (177.80mm) |
| Background Color | - |
| Graphics Color | Red, Green, Blue (RGB) |
| Touchscreen | Capacitive |
