OK202-25-OR-E
OLED MODULE 40DIG 20 X 2Manufacturer: Matrix Orbital
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More
Matrix Orbital OK202-25-OR-E is a 20x2 character OLED display module featuring a black background with red text. This electronic component offers a 40-character display capability with a character size of 5.55mm H x 3.20mm W. The module utilizes a dot size of 0.60mm W x 0.65mm H within its viewing area of 85.00mm L x 18.60mm W. Interface options include I2C, RS-232, and TTL, supporting versatile integration. Operating within a temperature range of -40°C to 80°C, it requires a supply voltage between 4.75V and 5.25V. The overall dimensions are 116.00mm x 37.00mm x 25.00mm. This component is commonly found in industrial control and data logging applications.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Display Type | OLED |
| Display Mode | - |
| Backlight | - |
| Interface | I2C, RS-232, TTL |
| Operating Temperature | -40°C ~ 80°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Viewing Area | 85.00mm L x 18.60mm W |
| Character Size | 5.55mm H x 3.20mm W |
| Display Format | 20 x 2 |
| Character Format | - |
| Dot Size | 0.60mm W x 0.65mm H |
| Outline L x W x H | 116.00mm x 37.00mm x 25.00mm |
| Text Color | Red |
| Background Color | Black |
| Number of Characters | 40.0 |
Request a Quote
Clients Also Buy
BLK204A-USB-GW
LCD MOD 80 DIG 20 X 4 BRACKT CBL
BLC2021-BL-IY
LCD MOD 40 DIG 20 X 2 BRACKT CBL

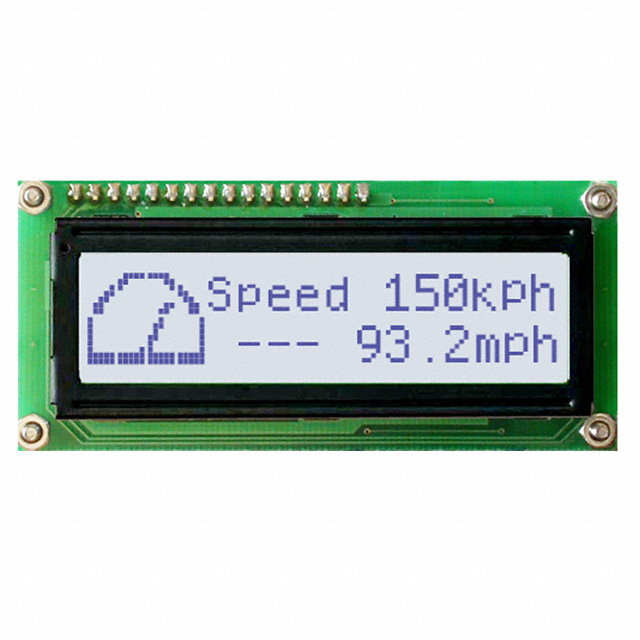

LK162-12-USB-WB-E
