LK204-7T-1U-USB-TCI-E-C385
LCD MOD 80DIG 20X4 TRANSMS R/G/BManufacturer: Matrix Orbital
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More

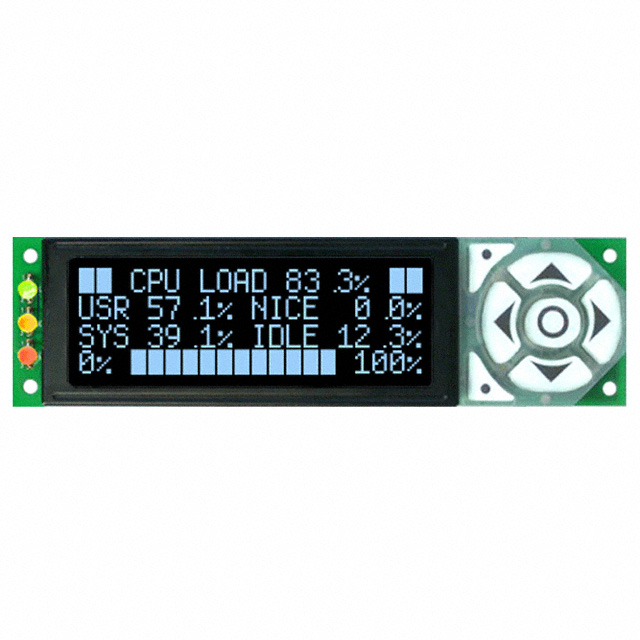

Matrix Orbital LK204-7T-1U-USB-TCI-E-C385 is a 20x4 alphanumeric character display module featuring a transmissive LCD with an 80-character capacity. This display utilizes a 5x8 dot matrix format for each character, with individual character dimensions of 5.15mm H x 3.20mm W and dot dimensions of 0.60mm W x 0.65mm H. The module offers a versatile Red/Green/Blue (RGB) LED backlight and supports a USB interface for communication. Its operating temperature range is -20°C to 70°C, and it requires a supply voltage of 4.75V to 5.25V. The viewing area measures 82.00mm L x 28.40mm W, with overall module dimensions of 144.00mm x 38.00mm x 33.00mm. This component is commonly found in industrial automation, test and measurement equipment, and point-of-sale systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Display Type | Alphanumeric |
| Display Mode | Transmissive |
| Backlight | LED - Red/Green/Blue |
| Interface | USB |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Viewing Area | 82.00mm L x 28.40mm W |
| Character Size | 5.15mm H x 3.20mm W |
| Display Format | 20 x 4 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.60mm W x 0.65mm H |
| Outline L x W x H | 144.00mm x 38.00mm x 33.00mm |
| Text Color | Red/Green/Blue |
| Background Color | Black |
| Number of Characters | 80.0 |
