LK202-25-FW-V
LCD MOD 40DIG 20X2 TRANSMISV WHTManufacturer: Matrix Orbital
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More

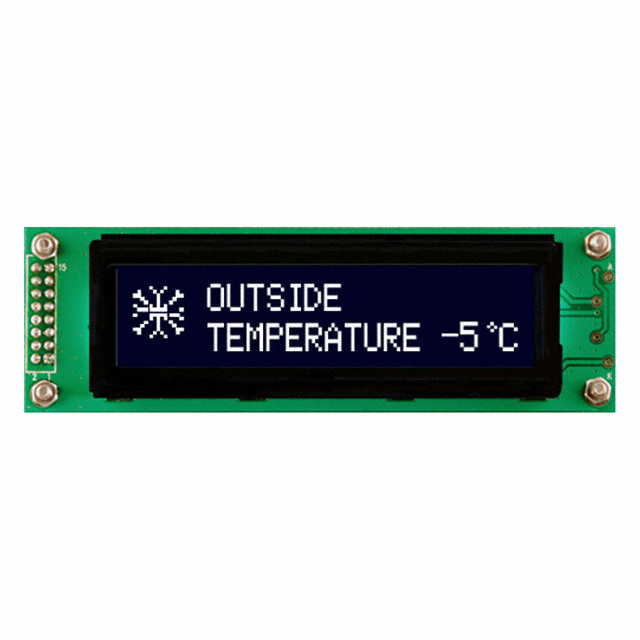

Matrix Orbital LK202-25-FW-V, a character display module, offers a 20x2 format with 40 characters total. This transmissive module utilizes FFSTN technology for its display, featuring a 5 x 8 dot character format with white LED backlighting on a black background. Interface options include I2C, RS-232, and TTL. The component's outline dimensions are 116.00mm x 37.00mm x 28.69mm. This component is suitable for applications in industrial automation, test and measurement equipment, and consumer electronics.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Display Type | FFSTN - Double Film Super-Twisted Nematic |
| Display Mode | Transmissive |
| Backlight | LED - White |
| Interface | I2C, RS-232, TTL |
| Operating Temperature | 0°C ~ 50°C |
| Voltage - Supply | 9V ~ 15V |
| Viewing Area | 83.00mm L x 18.60mm W |
| Character Size | 5.55mm H x 3.20mm W |
| Display Format | 20 x 2 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.60mm W x 0.65mm H |
| Outline L x W x H | 116.00mm x 37.00mm x 28.69mm |
| Text Color | White |
| Background Color | Black |
| Number of Characters | 40.0 |
