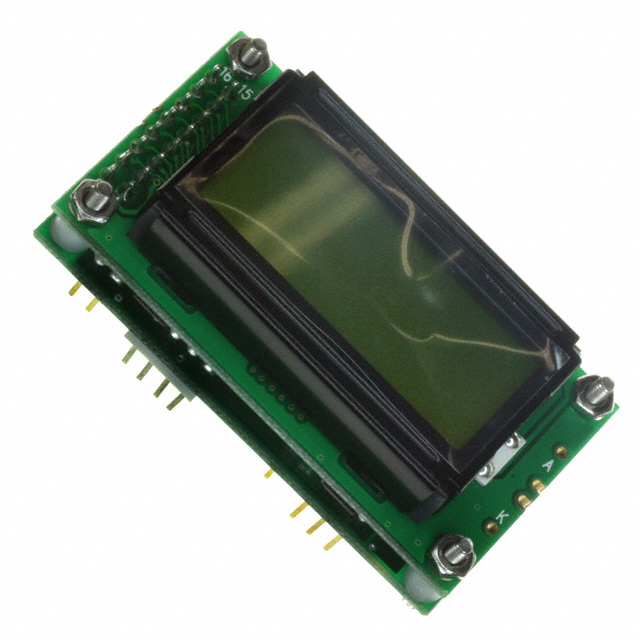

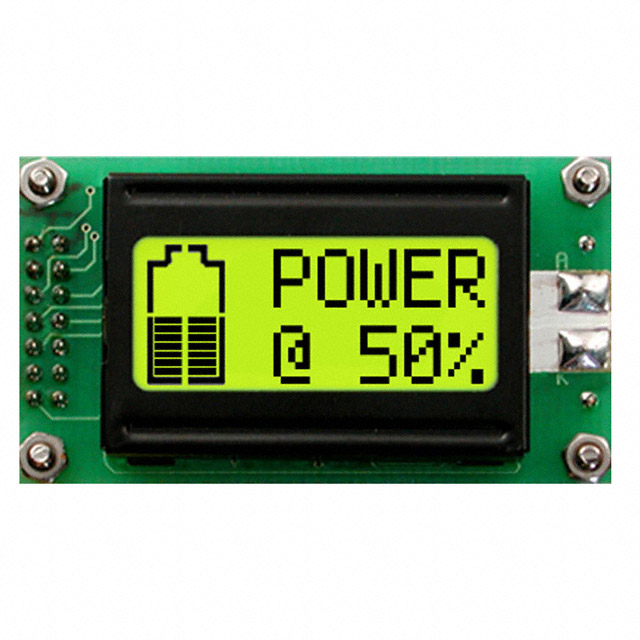

LCD0821
LCD MOD 16DIG 8X2 TRANSM YLW/GRNManufacturer: Matrix Orbital
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More
Character Display Module Transmissive 5 x 8 Dots TN - Twisted Nematic LED - Yellow/Green I2C, RS-232, TTL 58.00mm x 32.00mm x 26.80mm
Additional Information
Series: LCD0821RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Display Type | TN - Twisted Nematic |
| Display Mode | Transmissive |
| Backlight | LED - Yellow/Green |
| Interface | I2C, RS-232, TTL |
| Operating Temperature | 0°C ~ 50°C |
| Voltage - Supply | 5V |
| Viewing Area | 38.00mm L x 16.00mm W |
| Character Size | 5.56mm H x 2.96mm W |
| Display Format | 8 x 2 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.56mm W x 0.66mm H |
| Outline L x W x H | 58.00mm x 32.00mm x 26.80mm |
| Text Color | Black |
| Background Color | Green |
| Number of Characters | 16.0 |
