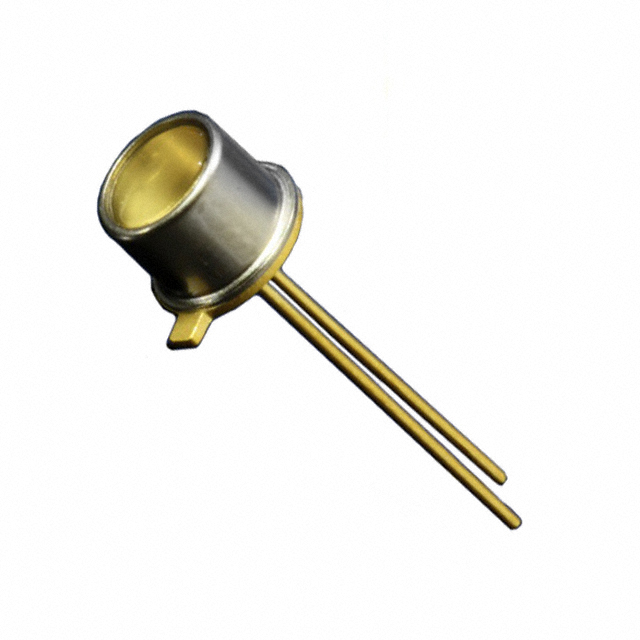

MTD5010W
SENSOR PHOTODIODE 850NM TO18Manufacturer: Marktech Optoelectronics
Categories: Photodiodes
Quality Control: Learn More
Marktech Optoelectronics MTD5010W is an 850nm silicon photodiode with a fast 3.5ns response time. This component features a wide spectral range from 400nm to 1100nm and a broad 110° viewing angle. The MTD5010W exhibits a typical dark current of 5nA and a responsivity of 0.2 A/W at 450nm, with a maximum reverse voltage rating of 30V. Packaged for through-hole mounting and operating across a temperature range of -30°C to 100°C, this photodiode is suitable for applications in industrial automation, optical sensing, and security systems requiring high-speed and broad spectral detection.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | - |
| Wavelength | 850nm |
| Mounting Type | Through Hole |
| Diode Type | - |
| Operating Temperature | -30°C ~ 100°C |
| Response Time | 3.5ns |
| Viewing Angle | 110° |
| Spectral Range | 400nm ~ 1100nm |
| Color - Enhanced | Infrared (NIR)/Red |
| Responsivity @ nm | 0.2 A/W @ 450nm |
| Active Area | - |
| Current - Dark (Typ) | 5nA |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
