MTD5010N
SENSOR PHOTODIODE 850NM TO18Manufacturer: Marktech Optoelectronics
Categories: Photodiodes
Quality Control: Learn More

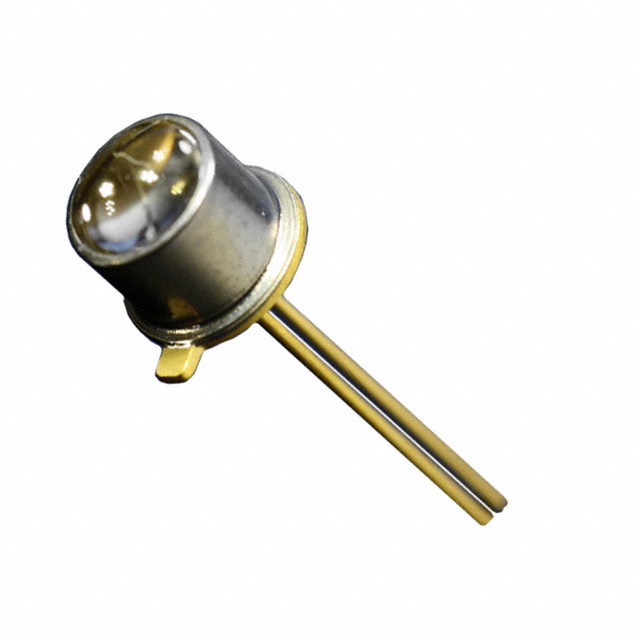

Marktech Optoelectronics MTD5010N is a high-speed photodiode designed for demanding applications. This TO-18 packaged component features a peak sensitivity at 850nm, with a spectral range spanning from 400nm to 1100nm, covering both visible red and near-infrared (NIR) spectrums. The MTD5010N offers a rapid 3.5ns response time, making it suitable for fast optical detection and signaling. Its low dark current of 5nA (typical) and a reverse voltage rating of up to 30V (Vr) ensure reliable performance. With a 24° viewing angle and responsivity of 0.2 A/W at 450nm, this photodiode is utilized in industries such as industrial automation, security systems, and medical instrumentation where precise and fast light detection is critical. The component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | - |
| Wavelength | 850nm |
| Mounting Type | Through Hole |
| Diode Type | - |
| Operating Temperature | -30°C ~ 100°C |
| Response Time | 3.5ns |
| Viewing Angle | 24° |
| Spectral Range | 400nm ~ 1100nm |
| Color - Enhanced | Infrared (NIR)/Red |
| Responsivity @ nm | 0.2 A/W @ 450nm |
| Active Area | - |
| Current - Dark (Typ) | 5nA |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
