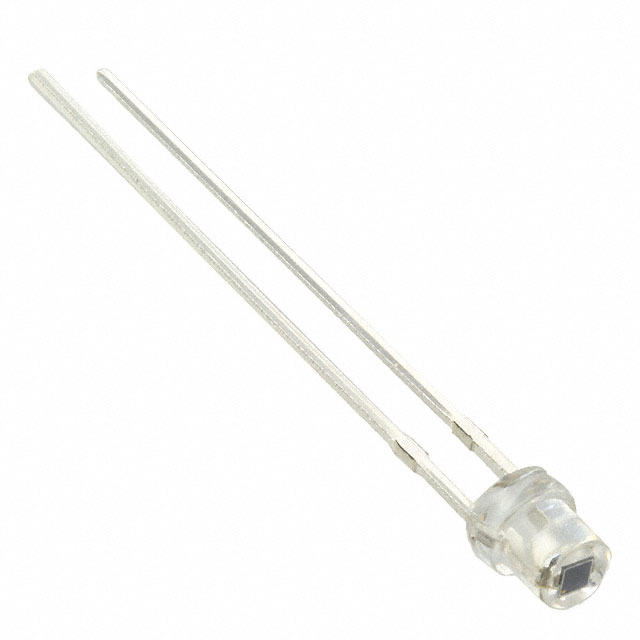

MTD3610D3
SENSOR PHOTODIODE 940NM T1Manufacturer: Marktech Optoelectronics
Categories: Photodiodes
Quality Control: Learn More
Marktech Optoelectronics MTD3610D3 is a silicon photodiode optimized for the 940nm spectral region. This component features a dark current of 10nA (typical) and a maximum reverse voltage rating of 20V. Its spectral range extends from 400nm to 1060nm, with a responsivity of 0.45 A/W at 660nm. Designed for operation within an ambient temperature range of -20°C to 85°C, the MTD3610D3 is supplied in bulk packaging. This photodiode is suitable for applications in industrial automation, medical sensing, and optical communication systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | - |
| Wavelength | 940nm |
| Mounting Type | - |
| Diode Type | - |
| Operating Temperature | -20°C ~ 85°C |
| Response Time | - |
| Viewing Angle | - |
| Spectral Range | 400nm ~ 1060nm |
| Color - Enhanced | - |
| Responsivity @ nm | 0.45 A/W @ 660nm |
| Active Area | - |
| Current - Dark (Typ) | 10nA |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
