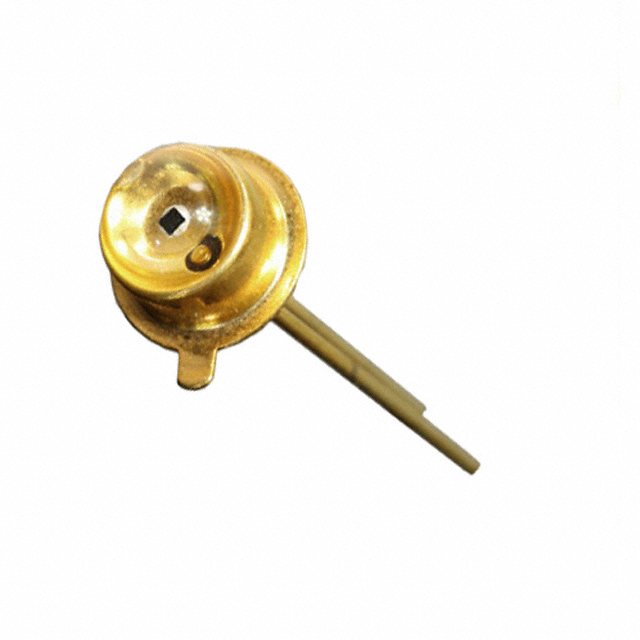

MTD3010PM
SENSOR PHOTODIODE 900NM TO18Manufacturer: Marktech Optoelectronics
Categories: Photodiodes
Quality Control: Learn More
Marktech Optoelectronics MTD3010PM is a photodiode designed for infrared (900nm) and visible light detection. This component features a wide 120° viewing angle and a broad spectral range from 400nm to 1100nm, with a specified responsivity of 0.2 A/W at 450nm. The MTD3010PM operates with a maximum reverse voltage of 30V and exhibits a typical dark current of 10nA. Its through-hole mounting type and TO-18 package are suitable for various industrial applications, including optical sensing, barcode scanning, and medical instrumentation where precise light measurement is critical. The operational temperature range is -30°C to 100°C.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | - |
| Wavelength | 900nm |
| Mounting Type | Through Hole |
| Diode Type | - |
| Operating Temperature | -30°C ~ 100°C |
| Response Time | - |
| Viewing Angle | 120° |
| Spectral Range | 400nm ~ 1100nm |
| Color - Enhanced | Infrared (NIR)/Red |
| Responsivity @ nm | 0.2 A/W @ 450nm |
| Active Area | - |
| Current - Dark (Typ) | 10nA |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
