MT6224-AHRG-A
LED GREEN/RED DIFF 5MM ROUND T/HManufacturer: Marktech Optoelectronics
Categories: LED Indication - Discrete
Quality Control: Learn More

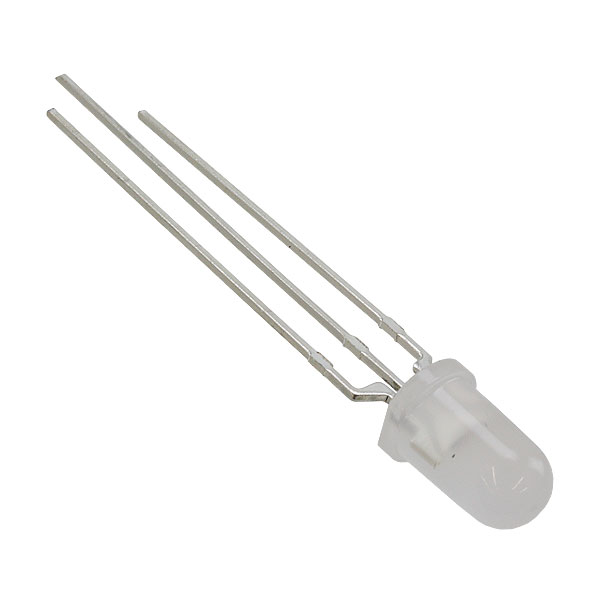

Marktech Optoelectronics MT6224-AHRG-A is a through-hole, common anode, diffused 5mm round LED. This discrete indicator component features dual color output with a dominant wavelength of 570nm for green and 622nm for red. Forward voltage specifications are 2.1V for green and 1.8V for red, tested at 10mA. The component offers luminous intensity of 50mcd for green and 60mcd for red, with a 70° viewing angle. This device is suitable for applications in industrial automation, medical equipment, and consumer electronics where reliable visual indication is critical. The radial package with 3 leads ensures straightforward mounting.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial - 3 Leads |
| Color | Green, Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 50mcd Green, 60mcd Red |
| Configuration | Common Anode |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 1.8V Red |
| Lens Color | White |
| Current - Test | 10mA Green, 10mA Red |
| Viewing Angle | 70° |
| Height (Max) | 9.20mm |
| Wavelength - Peak | 568nm Green, 630nm Red |
| Wavelength - Dominant | 570nm Green, 622nm Red |
| Supplier Device Package | 5mm Round |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 5.00mm Dia |
Request a Quote
Clients Also Buy
MT101NP-HR
LED RED 5.5MM ROUND T/H
MT106F-URD
LED RED 5.5MM ROUND T/H

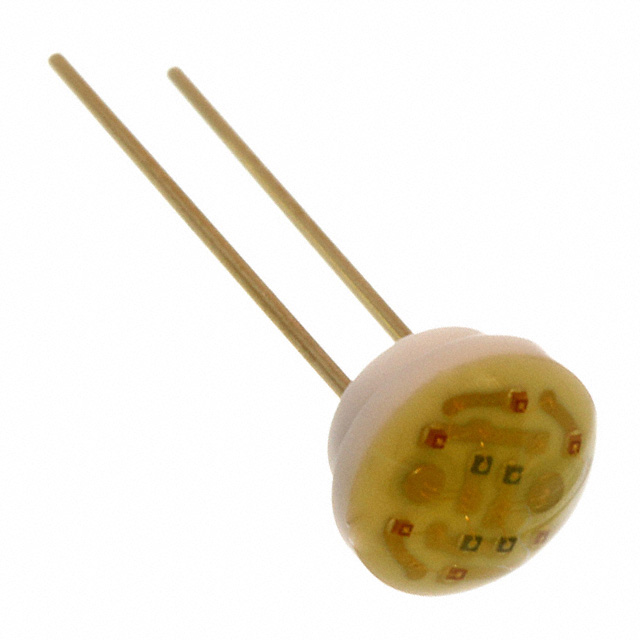

MT101NP-YL
