MTSM5015-199-IR
SWIR EMITTER 1550NM 1206 SMDManufacturer: Marktech Optoelectronics
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

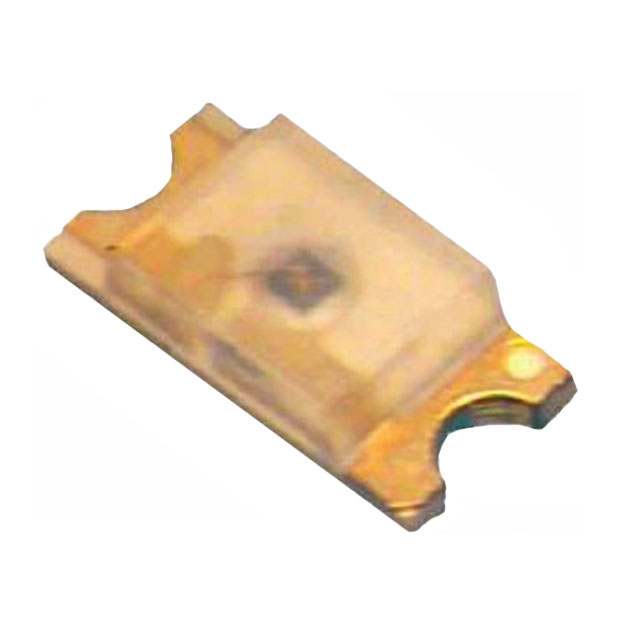

Marktech Optoelectronics MTSM5015-199-IR is a surface-mount infrared (IR) emitter designed for SWIR applications. This component features a typical forward voltage of 1V and a maximum DC forward current of 50mA, with a peak wavelength emission at 1550nm. The 1206 (3216 Metric) package provides a compact footprint for integration into various electronic designs. With a wide 90° viewing angle and an operating temperature range of -40°C to 85°C, the MTSM5015-199-IR is suitable for use in industrial automation, optical sensing, and telecommunications. This component is supplied on a strip for efficient handling and placement.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 1206 (3216 Metric) |
| Wavelength | 1550nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1V |
| Viewing Angle | 90° |
| Current - DC Forward (If) (Max) | 50mA |
| Radiant Intensity (Ie) Min @ If | - |
