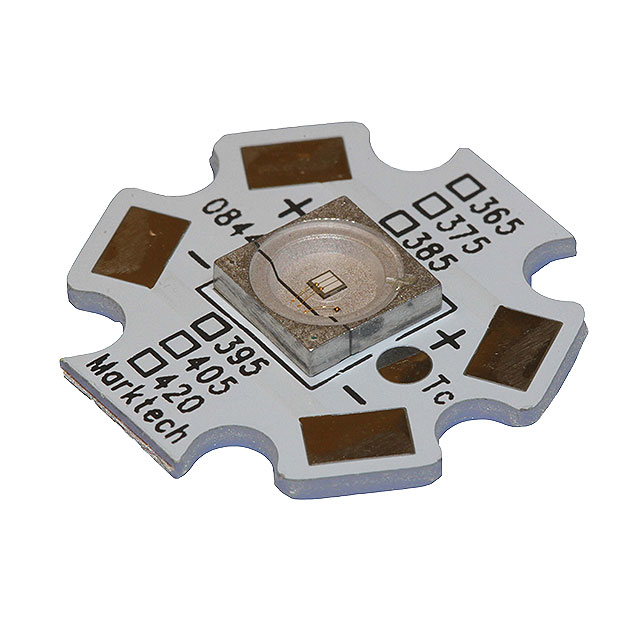

MTSM365UV-F5110S
365NM FLAT SMD UV STARBOARDManufacturer: Marktech Optoelectronics
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Marktech Optoelectronics MTSM365UV-F5110S is a 365nm Ultraviolet (UV) emitter designed for surface mounting. This component, utilizing a 2-SMD, No Lead package, operates with a typical forward voltage of 3.8V and a maximum DC forward current of 700mA. It features a wide 110° viewing angle, making it suitable for applications requiring broad UV illumination. The operating temperature range is -10°C to 85°C. This UV emitter is commonly employed in industries such as sterilization, curing, and fluorescence analysis.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 2-SMD, No Lead |
| Wavelength | 365nm |
| Mounting Type | Surface Mount |
| Type | Ultraviolet (UV) |
| Orientation | Top View |
| Operating Temperature | -10°C ~ 85°C |
| Voltage - Forward (Vf) (Typ) | 3.8V |
| Viewing Angle | 110° |
| Current - DC Forward (If) (Max) | 700mA |
| Radiant Intensity (Ie) Min @ If | - |
