MTPS9067NJ1
EMITTER VISIBLE 650NM 50MA TO-46Manufacturer: Marktech Optoelectronics
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

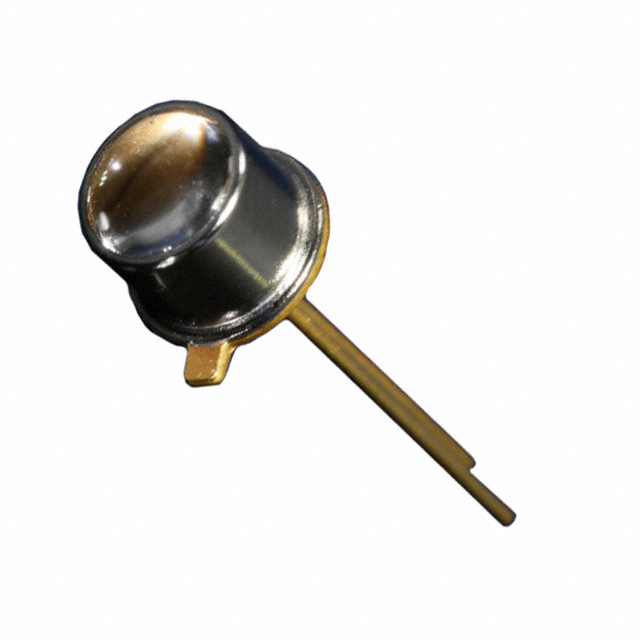

Marktech Optoelectronics MTPS9067NJ1 is a Point Source series visible emitter. This component features a 650nm wavelength with a typical forward voltage of 2.2V and a maximum DC forward current of 50mA. The TO-46-2 Metal Can package houses the emitter, designed for through-hole mounting. With a narrow viewing angle of 10°, this device offers precise light emission. Operating within an ambient temperature range of -20°C to 85°C, the MTPS9067NJ1 is suitable for applications requiring focused visible light, often found in industrial automation, sensing, and medical device instrumentation. The device is supplied in bulk packaging.
Additional Information
Series: Point SourceRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-46-2 Metal Can |
| Wavelength | 650nm |
| Mounting Type | Through Hole |
| Type | Visible |
| Orientation | Top View |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Viewing Angle | 10° |
| Current - DC Forward (If) (Max) | 50mA |
| Radiant Intensity (Ie) Min @ If | - |
